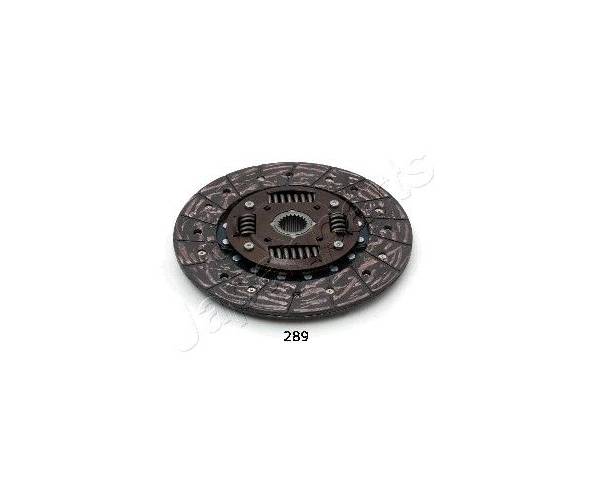

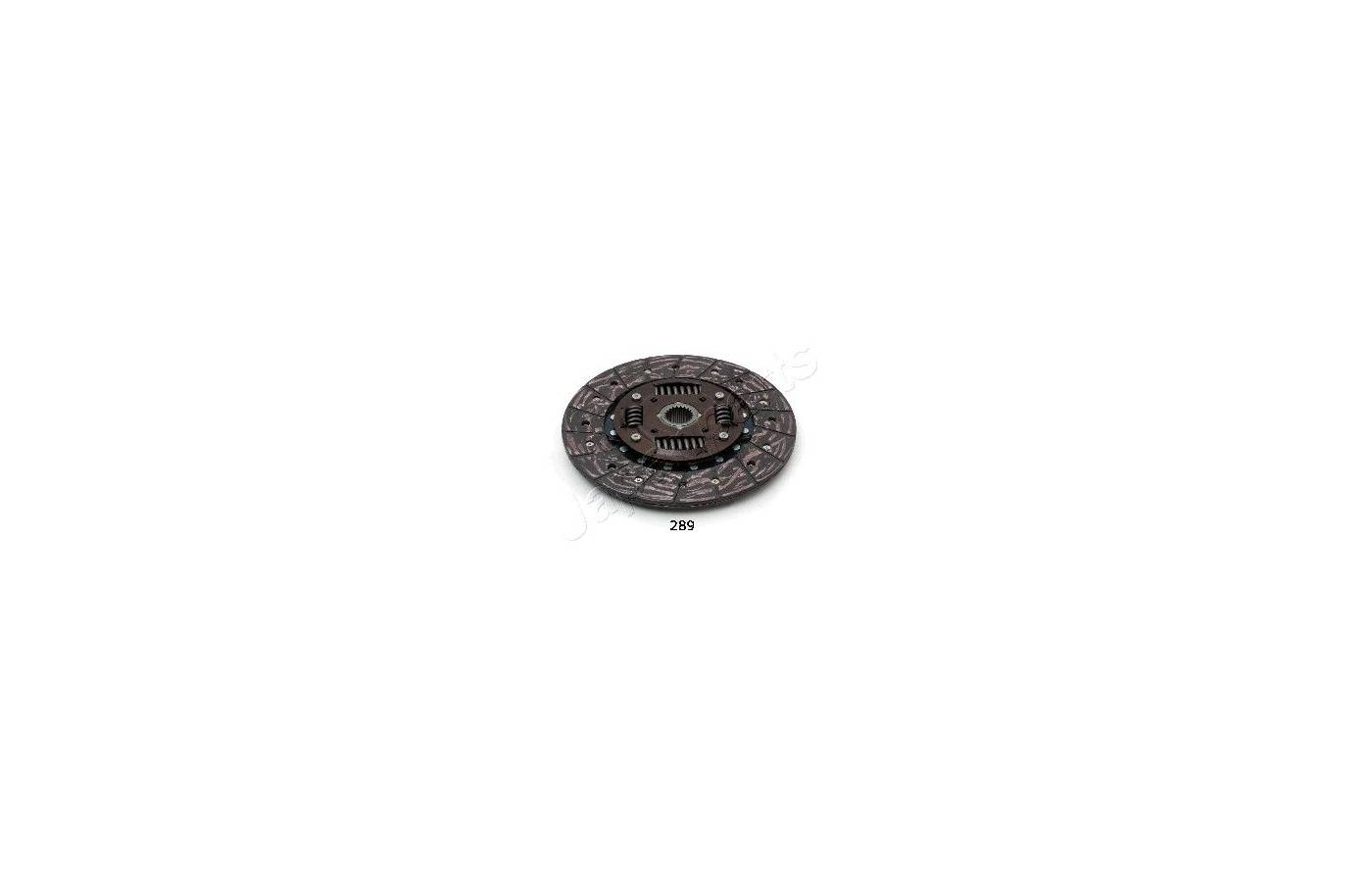

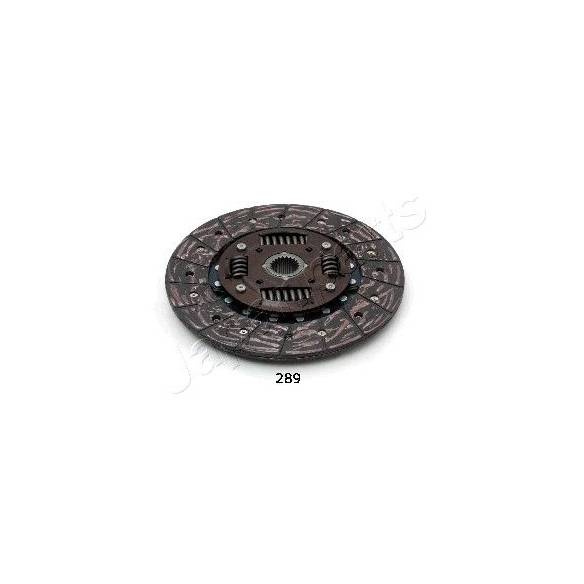

Disco de embrague - DF-289

Datos de la referencia:

Diámetro [mm]: 235 mm

Diámetro interior [mm]: 151 mm

Diámetro de centrado [mm]: 28,5 mm

Número de dientes: 21

Perfil del cubo: 29

Referencias OEM:

SUZUKI: 2240052D01, 2240052D03000

TOYOTA: 31250-25130, 31250-25131, 31250-25142, 31250-26180, 31250-26181, 31250-26182, 31250-26190, 3125012411, 3125012412, 3125014190, 3125019076, 3125026191

Intercambiabilidades:

AISIN: DT-092_JP,DT-092_JP,DT-092_JP,DTX-099,DT-092,DT-092_JP,DT-092,DT-092_JP,DT-092_JP,DT-092,DT-092,DT-092,DT-092

ASHIKA: 80-02-289,80-02-289,80-02-289,80-02-289,80-02-289,80-02-289,80-02-289,80-02-289,80-02-289,80-02-289,80-02-289,80-02-289,80-02-289,80-02-289

ASHUKI: 0660-3602,0660-3602,0660-3602,0660-3602,0660-3602,0660-3602,0660-3602,0660-3602,0660-3602,0660-3602,0660-3602,0660-3602,0660-3602

BLUE PRINT: ADT33168,ADT33135,ADT33168,ADT33168,ADT33168,ADT33135,ADT33168,ADT33135,ADT33135,ADT33168

EXEDY: TYD113U,TYD307

HERTH-BUSS JAKOPARTS: J2202021,J2202021,J2202021,J2202021,J2202021

JAPKO: 80289,80289,80289,80289,80289,80289,80289,80289,80289,80289,80289,80289,80289,80289

KAISHIN: KT380-K

LUCAS: LKCA870042

SACHS: 1878 071 041,1878 071 041,1878 071 041,1862 615 002,1862 620 001,1862 615 002,1862 620 001,1878 071 041

STELLOX: 07-00016-SX,07-00016-SX,07-00016-SX,07-00016-SX

Compatibilidades:

TOYOTA:

HIACE IV Bus (_H1_, _H2_) (08/1995-):

2.4 TD (LXH12_, LXH22_) 90CV (08/1995-08/2006) 200608 Diésel (2L-T)

2.4 TD 4WD (LXH18_, LXH28_) 90CV (08/1995-08/2006) 200608 Diésel (2L-T)

HIACE IV Box (LXH1_, RZH1_, LH1_) (08/1995-):

2.4 TD (LXH12_, LXH22_) 90CV (08/1995-08/2006) 200608 Diésel (2L-T)

2.4 TD 4WD (LXH18_, LXH28_) 90CV (08/1995-08/2006) 200608 Diésel (2L-T)

HILUX V Pickup (_N_, KZN1_, VZN1_) (09/1988-01/1999):

2.4 D 4WD (LN110_) 79CV (01/1994-12/1997) 199712 Diésel (2L)

Motores TOYOTA: 2L-T,2L
