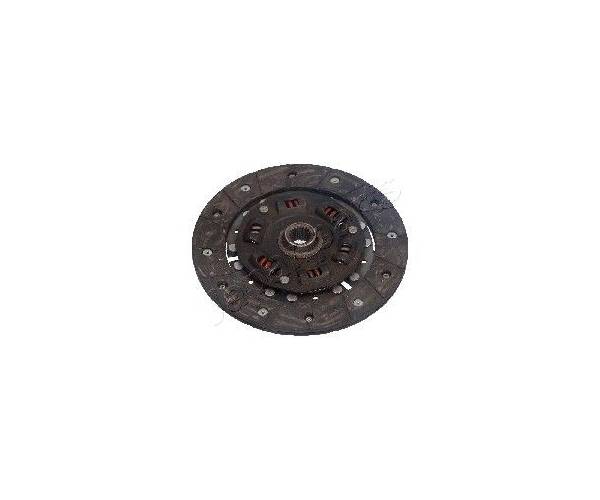

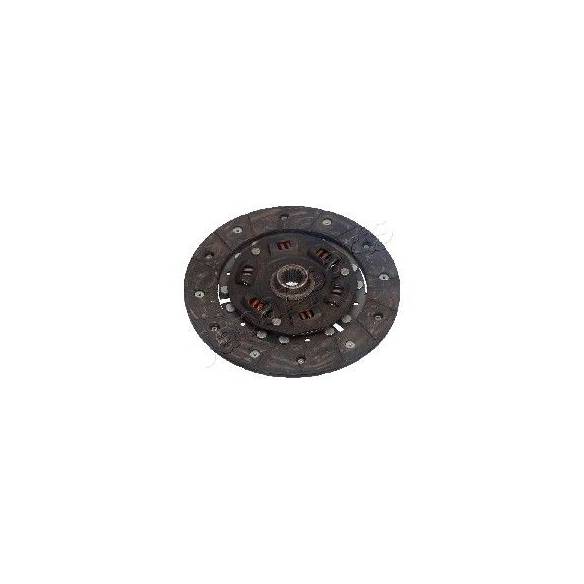

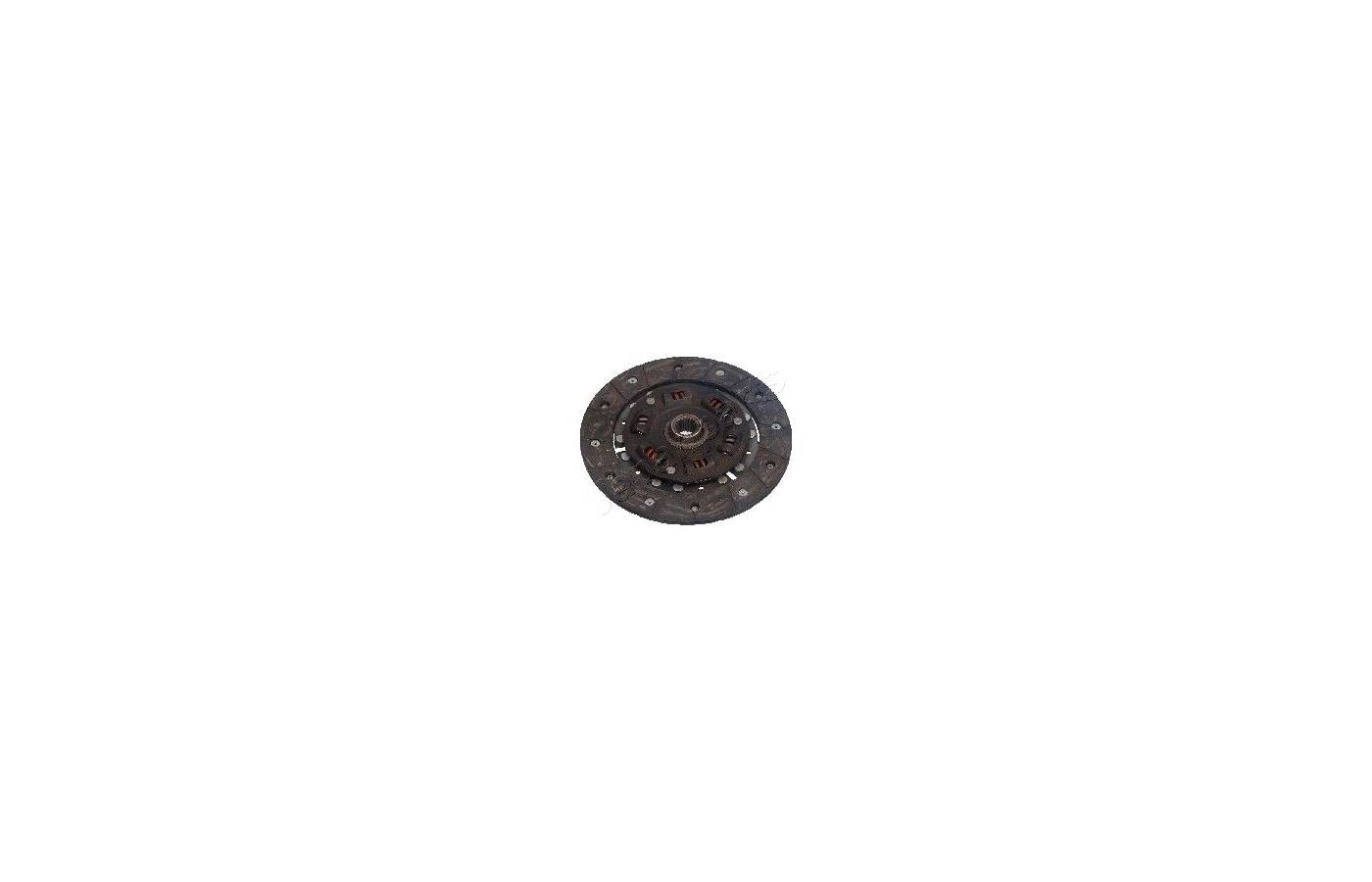

Disco de embrague - DF-704

Datos de la referencia:

Diámetro [mm]: 180 mm

Diámetro interior [mm]: 124 mm

Diámetro de centrado [mm]: 19 mm

Número de dientes: 23

Perfil del cubo: 18

Referencias OEM:

SUBARU: 30100-KA001, 30100-KA02, 30100-KA020, 30100-KA021, 30100-KA070, 30100-KA121, 30100-KA130, 30100-KA131, 30100-KA140, 30100-KA141, 30100-KA290, 30100-KA291, 30100-KA300, 30100KA010, 30100KA011, 30100KA012, 30100KA040, 30100KA041, 30100KA042, 30100KA221, 30100KA250, 30100KA401, 430125600, 430125610, 430125700, 430125710, 48072-4091, 48072-5400, 48072-5500, 48072-5510, 480725800, 480725810, F11803

Intercambiabilidades:

AISIN: DF-011,DF-011,DF-009,DF-011,DF-011,DF-009,DF-011,DF-011,DF-011,DF-011,DF-011,DF-011,DF-011,DF-011,DF-011,DF-011

ASHIKA: 80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704,80-07-704

BLUE PRINT: ADS73109,ADS73109,ADS73109,ADS73109,ADS73109,ADS73109,ADS73109,ADS73109,ADS73109,ADS73109,ADS73109,ADS73109,ADS73109,ADS73109,ADS73109

EXEDY: FJD005U,FJD005U,FJD005U,FJD005U,FJD005U,FJD005U,FJD005U,FJD005U,FJD005U,FJD005U,FJD005U,FJD005U,FJD005U

HERTH-BUSS JAKOPARTS: J2207001,J2207001,J2207001,J2207001,J2207001,J2207001,J2207001,J2207001,J2207001

JAPKO: 80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704,80704

NPS: S220U04,S220U04,S220U04

SACHS: 1862 839 001,1862 839 001,1862 839 001,1862 839 001,1862 839 001,1862 839 001,1862 839 001,1862 839 001,1862 839 001,1862 839 001,1862 839 001

Compatibilidades:

SUBARU:

JUSTY I (KAD) (11/1984-08/1996):

1000 54CV (11/1984-06/1989) 198906 Gasolina (EF10)

1000 4WD (KAD-A) 54CV (11/1984-12/1990) 199012 Gasolina (EF10)

1000 50CV (05/1987-10/1995) 199510 Gasolina (EF10)

1200 67CV (05/1987-10/1995) 199510 Gasolina (EF12)

1200 4WD (KAD-A) 67CV (05/1987-05/1991) 199105 Gasolina (EF12)

1200 4WD 75CV (10/1990-04/1996) 199604 Gasolina (EF12E)

1200 4WD 68CV (10/1986-12/1990) 199012 Gasolina (EF12)

LIBERO Bus (E10, E12) (01/1983-02/2000):

1.0 4WD (E10, KJ6) 50CV (01/1983-12/1987) 198712 Gasolina (EF10)

1.2 4WD (E12, KJ8) 52CV (08/1986-02/2000) 200002 Gasolina (EF12)

1.2 i 4WD (E12, FA) 54CV (08/1991-02/2000) 200002 Gasolina (EF12)

Motores SUBARU: EF10,EF12,EF12E
