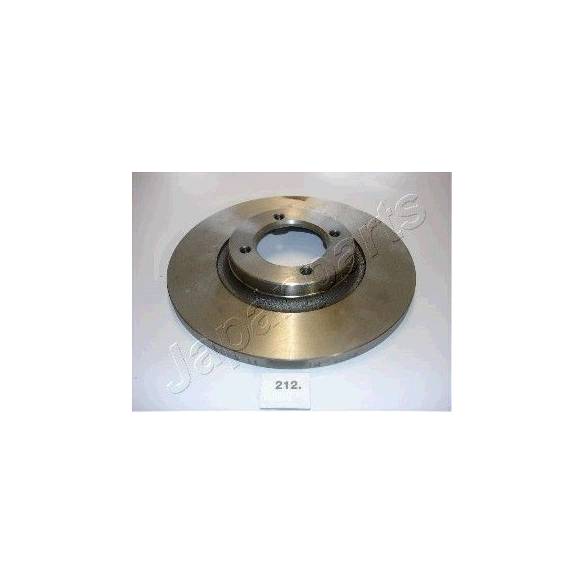

Datos de la referencia:
Lado de montaje: Eje delantero
corona de agujeros - Ø [mm]: 64 mm
Altura [mm]: 32 mm
Diámetro [mm]: 228,4 mm
Espesor de disco de frenos [mm]: 12,5 mm
Espesor mínimo [mm]: 11,5 mm
Tipo de disco de frenos: Macizo
Referencias OEM:
DAIHATSU: 4351212110, 4351212110000
TOYOTA: 4351212100, 4351212110
Intercambiabilidades:
AP: 10266,10266,10266
APEC braking: DSK152,DSK152,DSK152
ASHIKA: 60-02-212,60-02-212,60-02-212,60-02-212
BRECO: BS 7303,BS 7303,BS 7303
BREMBO: 08.2796.10,08.2796.10,08.2796.10
BREMSI: DBA049S,DBA049S,DBA049S,DBA049S
EUROBRAKE: 5815209909,5815209909
JAPKO: 60212,60212,60212,60212
JURID: 561232J,561232J,561232J,561232J
KAVO PARTS: BR-1721,BR-1721
KAWE: 6360 00,6360 00,6360 00
KLAXCAR FRANCE: 25837z,25837z
MAXTECH: 861064.6880,861064.6060,861064.0000,861064.6060,861064.0080,861064.0060,861064.6980,861064.0080,861064.6980,861064.0000,861064.6880,861064.0060
MINTEX: MDC1108,MDC1108
NK: 209909,209909
REMSA: 6360.00,6360.00,6360.00
ROADHOUSE: 6360.00,6360.00,6360.00
sbs: 1815209909,1815209909
STELLOX: 6020-3025VK-SX,6020-3025V-SX,6020-3025VK-SX,6020-3025VK-SX,6020-3025VK-SX
WOKING: D6360.00,D6360.00,D6360.00
Compatibilidades:
DAIHATSU:
CHARMANT (A) (10/1981-07/1987):
1.3 (A35) 65CV (11/1981-07/1987) 198707 Gasolina (4K)
Motores DAIHATSU: 4K
TOYOTA:
COROLLA Hatchback (_E7_) (09/1979-09/1983):
1.3 (KE70) 60CV (09/1979-01/1982) 198201 Gasolina (4K)
1.3 (KE70) 65CV (02/1982-05/1983) 198305 Gasolina (4K)
COROLLA Estate (_E7_) (12/1979-08/1987):
1.3 (KE70) 60CV (12/1979-01/1982) 198201 Gasolina (4K-C)
1.3 (KE70) 65CV (02/1982-08/1987) 198708 Gasolina (4K)
COROLLA (_E7_) (09/1979-09/1985):
1.3 (KE70) 60CV (09/1979-06/1983) 198306 Gasolina (4K)
1.3 (KE70) 65CV (02/1982-06/1983) 198306 Gasolina (4K)
COROLLA (_E12_) (01/2001-12/2007):
2.0 D-4D (CDE120R_, CDE120L_) 116CV (05/2003-02/2007) 200702 Diésel (1CD-FTV)
COROLLA Saloon (_E12_) (08/2000-03/2008):
2.0 D-4D (CDE120_) 116CV (06/2004-07/2007) 200707 Diésel (1CD-FTV)
Motores TOYOTA: 4K,4K-C,1CD-FTV
