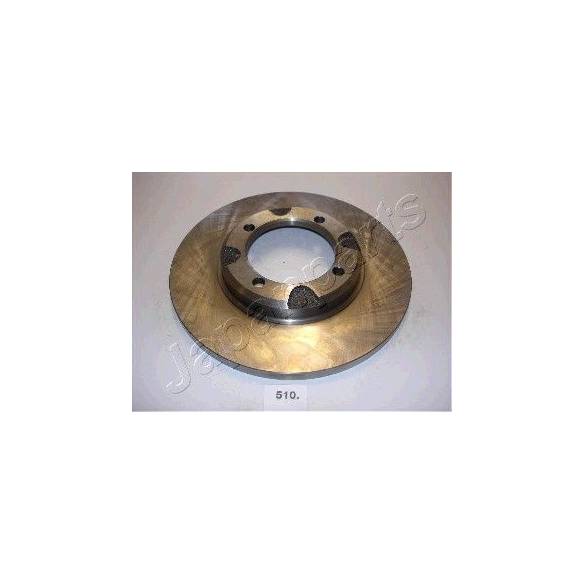

Datos de la referencia:
Lado de montaje: Eje delantero
corona de agujeros - Ø [mm]: 86 mm
Altura [mm]: 34 mm
Diámetro [mm]: 242,4 mm
Espesor de disco de frenos [mm]: 13 mm
Espesor mínimo [mm]: 11,4 mm
Tipo de disco de frenos: Macizo
Referencias OEM:
MITSUBISHI: MB234076, MB238076, MB316676
PROTON: MB316676
Intercambiabilidades:
A.B.S.: 15522
AP: 14122,14122,14122,14122
APEC braking: DSK216,DSK216,DSK216,DSK216
ASHIKA: 60-05-510,60-05-510,60-05-510,60-05-510
ATE: 24.0113-0159.1,24.0113-0159.1
BENDIX: 520143
BORG & BECK: BBD4920,BBD4920,BBD4920,BBD4920
BRECO: BS 7348,BS 7348,BS 7348,BS 7348
BREMBO: 08.4786.10,08.4786.10,08.4786.10,08.4786.10
BREMSI: DBA343S,DBA343S,DBA343S,DBA343S
DELPHI: BG2324,BG2324,BG2324,BG2324
DJ PARTS: BD2406,BD2406
DON: PCD17242,PCD17242
Dr!ve-: DP1010.11.1089,DP1010.11.1089
E.T.F.: 19-6676,19-6676,19-6676,19-6676
EUROBRAKE: 5815203005,5815203005,5815203005
FREMAX: BD-6676,BD-6676
GIRLING: 6019973,6019973
IPS Parts: IBT-1510,IBT-1510,IBT-1510
JAPKO: 60510,60510,60510,60510
JURID: 561286J,561286J,561286J,561286J
KAVO PARTS: BR-5701-C
KAWE: 6388 00,6388 00
MAXGEAR: 19-2633,19-2633SPORT,19-2633,19-2633SPORT
MAXTECH: 855004.0000,855004.6880,855004.0000,855004.6880,855004.0060,855004.6060,855004.6980,855004.6060,855004.6060,855004.0060,855004.6060,855004.6980,855004.0080,855004.0080,855004.0000,855004.0080,855004.6880,855004.0060,855004.6980,855004.0060,855004.6980,855004.0000,855004.0080,855004.6880
MINTEX: MDC387,MDC387
NIPPARTS: J3305010,J3305010
NK: 203005,203005,203005
NPS: M330I10,M330I10,M330I10
PROTECHNIC: PRD1176,PRD1176,PRD1176,PRD1176
REMSA: 6388.00,6388.00
ROADHOUSE: 6388.00,6388.00
SASIC: 9004418J,9004418J,9004418J
sbs: 1815203005,1815203005,1815203005
ST-TEMPLIN: 53.111.19400,53.110.19400,53.111.19400,53.110.19400,53.111.19400,53.110.19400
STELLOX: 6020 1212-SX,6020 1212-SX
TEXTAR: 92034600,92034600
TRISCAN: 8120 42103,8120 42103,8120 42103
TRW: DF1997,DF1997
WOKING: D6388.00,D6388.00
Compatibilidades:
MITSUBISHI:
COLT II (C1_A) (10/1982-04/1988):
1.2 EL,GL (C15A) 55CV (02/1984-09/1986) 198609 Gasolina (4G16)
1.2 EL,GL (C15A) 60CV (09/1986-04/1988) 198804 Gasolina (4G16)
1.5 GLX (C12A) 70CV (09/1985-04/1988) 198804 Gasolina (G15B)
1.5 GLX (C12A) 75CV (09/1984-04/1988) 198804 Gasolina (4G15 (8V))
COLT III (C5_A) (10/1986-05/1992):
1.5 GLXi (C52A) 84CV (04/1988-05/1992) 199205 Gasolina (4G15 (8V))
CORDIA (A21_A, AB, AC) (10/1982-07/1989):
1.6 GSL (A212A) 75CV (10/1982-12/1986) 198612 Gasolina (4G32)
1.8 GSL (A215A) 90CV (10/1986-07/1989) 198907 Gasolina (4G37)
LANCER III (C1_A, C6_A) (11/1983-06/1990):
1.2 GL (C15AS) 55CV (01/1984-10/1986) 198610 Gasolina (4G16)
1.2 (C65A) 60CV (08/1986-04/1988) 198804 Gasolina (4G16)
1.5 GLX (C12AS) 70CV (06/1985-04/1988) 198804 Gasolina (G15B)
1.5 GLX (C12AS) 75CV (11/1983-04/1988) 198804 Gasolina (4G15 (8V))
LANCER IV (C6_A, C7_A) (04/1988-12/1997):
1.3 (C61A) 70CV (08/1988-05/1992) 199205 Gasolina (4G13 (8V))
1.3 (C61A) 70CV (08/1988-05/1992) 199205 Gasolina (G13B)
1.3 (C61A) 60CV (04/1988-05/1992) 199205 Gasolina (4G13 (8V))
1.5 (C62A) 84CV (04/1988-05/1992) 199205 Gasolina (4G15 (12V))
TREDIA (A21_) (09/1982-03/1988):
1.4 GLX (A211) 70CV (10/1982-08/1985) 198508 Gasolina (4G12)
1.6 GLS (A212) 75CV (09/1982-10/1987) 198710 Gasolina (4G32)
LANCER III Station Wagon (C1_V, C3_V) (09/1985-08/1992):
1.5 (C12V) 70CV (09/1985-08/1989) 198908 Gasolina (G15B)
1.5 (C12V) 75CV (09/1985-12/1987) 198712 Gasolina (4G15 (8V))
1.5 (C12V) 83CV (09/1988-12/1990) 199012 Gasolina (4G15 (8V))
LANCER IV Hatchback (C6_A, C7_A) (04/1988-05/1994):
1.5 (C62A) 84CV (06/1988-05/1992) 199205 Gasolina (4G15 (8V))
Motores MITSUBISHI: 4G16,G15B,4G15 (8V),4G32,4G37,4G13 (8V),G13B,4G15 (12V),4G12
