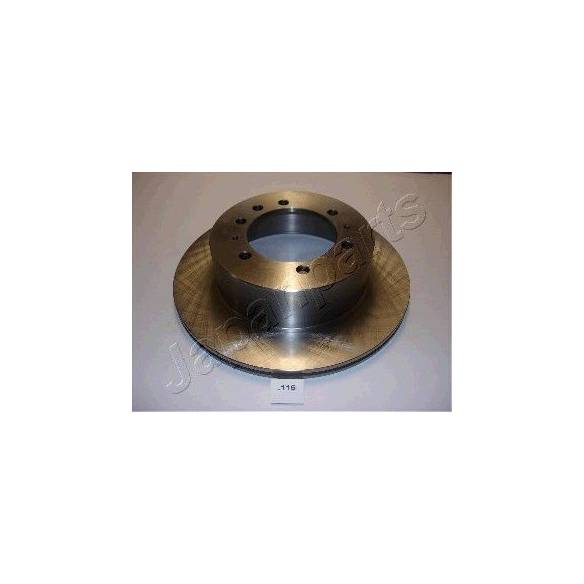

Datos de la referencia:
Lado de montaje: Eje trasero
corona de agujeros - Ø [mm]: 111 mm
Altura [mm]: 80,3 mm
Diámetro [mm]: 316,4 mm
Espesor de disco de frenos [mm]: 18 mm
Espesor mínimo [mm]: 16 mm
Tipo de disco de frenos: ventilado
Referencias OEM:
NISSAN: 4320605J03, 4320605J04, 43206VB000
Intercambiabilidades:
AKEBONO: BN-1054E,BN-1054E,BN-1054,BN-1054,BN-1054E,BN-1054
AP: 25142,25142,25142
APEC braking: DSK341,DSK341,DSK341
ASHIKA: 61-01-116,61-01-116,61-01-116
BORG & BECK: BBD4199,BBD4199,BBD4199
BRAXIS: AD1032
BRECO: BS 8751,BS 8751,BS 8751
BREMBO: 09.A451.10,09.A451.10,09.A451.10
BREMSI: DBA976V,DBA976V,DBA976V
CHAMPION: 562223CH-1,562223CH-1,562223CH-1
COMLINE: ADC0245V,ADC0245V,AND6619,ADC0245V,AND6619,AND6619
DJ PARTS: BD1066,BD1066,BD1066
DON: PCD15582,PCD15582,PCD15582
Dr!ve-: DP1010.11.1327,DP1010.11.1327
EUROBRAKE: 5815202255,5815202255,5815202255
EUROREPAR: 1622810380,1622810380,1622810380
FARCOM: 230947,230947,230947
FERODO: DDF976-1,DDF976-1,DDF976-1
HELLA: 8DD 355 110-831,8DD 355 110-831,8DD 355 110-831
HELLA PAGID: 8DD 355 110-831,8DD 355 110-831,8DD 355 110-831
JAPKO: 61116,61116,61116
JURID: 562223JC,562223JC,562223J,562223J,562223JC,562223J
KAISHIN: CBR254,CBR254,CBR254
KAVO PARTS: BR-6766-C,BR-6766-C,BR-6766-C
KAWE: 6926 10,6926 10
LPR: N2804V,N2804V,N2804V
MAGNETI MARELLI: 360406072200,360406072200,360406072200
MAXGEAR: 19-2408,19-2408,19-2408SPORT,19-2408,19-2408SPORT,19-2408SPORT
MINTEX: MDC1298,MDC1298,MDC1298
MOTAQUIP: LVBE192Z,LVBE192Z,LVBE192Z
NK: 202255,202255,202255
NPS: N331N16,N331N16,N331N16
OPEN PARTS: BDA1884.20,BDR1884.20,BDA1884.20,BDR1884.20,BDR1884.20,BDA1884.20
OPTIMAL: BS-7902,BS-7902C,BS-7902,BS-7902C
PROTECHNIC: PRD6187,PRD6187,PRD6187
RAICAM: RD00166,RD00166,RD00166
REMSA: 6926.10,6926.10
REMY: RAD2166C,RAD2166C,RAD2166,RAD2166,RAD2166C,RAD2166
ROADHOUSE: 6926.10,6926.10
sbs: 1815202255,1815202255,1815202255
STELLOX: 6020-1266K-SX,6020-1266K-SX,6020 1266-SX,6020-1266K-SX,6020-1266-SX,6020-1266-SX,6020 1266-SX,6020 1266-SX,6020-1266-SX
TEXTAR: 92129900,92129900,92129900
WOKING: D6926.10,D6926.10
Compatibilidades:
NISSAN:
PATROL GR V Wagon (Y61) (06/1997-):
2.8 TD 129CV (06/1997-05/2000) 200005 Diésel (RD28Ti)
3.0 DTi 158CV (05/2000-) Diésel (ZD30DDTi)
3.0 DTi 160CV (05/2000-) Diésel (ZD30DDTi)
4.8 245CV (03/2000-) Gasolina (TB48DE)
PATROL GR IV (Y60, GR) (01/1986-02/1998):
2.8 TD (Y60A) 116CV (09/1988-06/1997) 199706 Diésel (RD28T)
4.2 D (Y60GR) 116CV (11/1988-06/1997) 199706 Diésel (TD42)
4.2 Cat 165CV (11/1988-02/1998) 199802 Gasolina (TB42E)
Motores NISSAN: RD28Ti,ZD30DDTi,TB48DE,RD28T,TD42,TB42E
