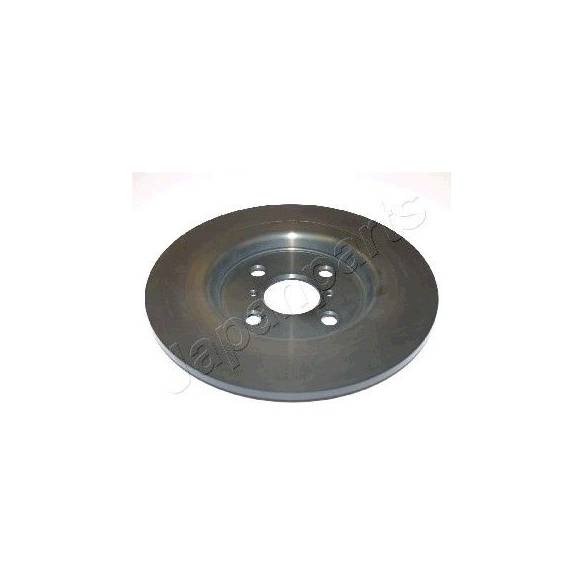

Datos de la referencia:
Lado de montaje: Eje trasero
corona de agujeros - Ø [mm]: 55 mm
Altura [mm]: 27 mm
Diámetro [mm]: 278 mm
Espesor de disco de frenos [mm]: 9 mm
Espesor mínimo [mm]: 7 mm
Tipo de disco de frenos: Macizo
Referencias OEM:
DAIHATSU: 424310D060, 424310D060000
TOYOTA: 424310D060
TOYOTA (FAW): 424310D120
Intercambiabilidades:
A.B.S.: 17827,17827
AKEBONO: BN-0134E,BN-0134
AP: 15014,15014
APEC braking: DSK2526
ASHIKA: 61-02-238,61-02-238,61-02-238,61-02-238
BENDIX: 522063
BORG & BECK: BBD4601,BBD4601,BBD4601,BBD4601
BRAXIS: AE0120
BRECO: BS 6006,BS 6006
BREMBO: 08.B044.10,08.B044.10
BREMSI: DBB588S,DBB588S,DBB588S,DBB588S
CHAMPION: 562422CH,562422CH,562422CH,562422CH
COMLINE: ADC01132,AND6706
DENCKERMANN: B130621
DIAMAX: N08902P,N08902P,N08902,N08902
DJ PARTS: BD1990
DON: PCD12392,PCD12392
Dr!ve-: DP1010.11.1447
E.T.F.: 19-1680
EUROBRAKE: 58152045111,58152045111,58152045111
FARCOM: 231123
FERODO: DDF1588C,DDF1588C,DDF1588C,DDF1588C
FI.BA: FBD246
FREMAX: BD-2022,BD-2022,BD-2022
HELLA: 8DD 355 114-051,8DD 355 114-051
HELLA PAGID: 8DD 355 114-051,8DD 355 114-051
JAPKO: 61238,61238,61238,61238
JP GROUP: 4863201300
JURATEK: TOY207
JURID: 562422J,562422J,562422JC,562422JC,562422J,562422JC,562422JC,562422J
KAISHIN: CBR405
KAVO PARTS: BR-9461-C,BR-9461-C,BR-9461-C
KAWE: 61173 00
LPR: T2046PR,T2046P,T2046PR,T2046P
MAGNETI MARELLI: 360406111000,360406111000
MAXGEAR: 19-2477,19-2477SPORT,19-2477MAX,19-2477MAX
MAXTECH: 861265.0000,861265.6880,861265.0080,861265.6060,861265.0060,861265.6980,861265.0080,861265.0000,861265.6880,861265.0060,861265.6980,861265.6060
MINTEX: MDC1824,MDC1824
MOTAQUIP: LVBD1281Z
NK: 2045111,2045111,2045111,3145111,3145111,3145111
OPEN PARTS: BDR2339.10,BDA2339.10,BDA2339.10,BDR2339.10
PROTECHNIC: PRD5373,PRD5373
QUARO: QD4636
RAICAM: RD01091
REMSA: 61173.00
REMY: RAD1104,RAD1104C,RAD1104C,RAD1104,RAD1104C,RAD1104
ROADHOUSE: 61173.00
SASIC: 6106120
sbs: 18153145111,18152045111,18153145111,18153145111,18152045111,18152045111
STELLOX: 6020 1445-SX,6020 1445-SX,6020-1445-SX,6020 1445-SX,6020-1445-SX,6020-1445-SX
TEXTAR: 92161900,92161903,92161900,92161903
VAICO: V70-40013
VALEO: 197111,197111
VEMA: 98712
WOKING: D61173.00
Compatibilidades:
DAIHATSU:
CHARADE (05/2011-):
1.33 16V 99CV (05/2011-) Gasolina (1NR-FE)
Motores DAIHATSU: 1NR-FE
TOYOTA:
YARIS (_P9_) (01/2005-):
1.33 VVT-i (NSP90_) 99CV (07/2010-) Gasolina (1NR-FE)
1.0 VVT-i (KSP90_) 69CV (01/2005-11/2011) 201111 Gasolina (1KR-FE)
1.4 D-4D (NLP90_) 90CV (08/2005-) Diésel (1ND-TV)
1.3 VVT-i (SCP90_) 87CV (08/2005-) Gasolina (2SZ-FE)
1.33 VVT-i (NSP90_) 100CV (11/2008-) Gasolina (1NR-FE)
YARIS (_P13_) (12/2010-):
1.0 (KSP130_) 69CV (12/2010-) Gasolina (1KR-FE)
1.4 D (NLP130_) 90CV (09/2011-) Diésel (1ND-TV)
1.3 (NSP130_) 99CV (09/2011-) Gasolina (1NR-FE)
1.3 (NSP130_) 99CV (09/2011-) Gasolina (1NR-FKE)
1.5 Hybrid (NHP130_) 75CV (03/2012-) Híbrido (1NZ-FXE)
Motores TOYOTA: 1NR-FE,1KR-FE,1ND-TV,2SZ-FE,1NR-FKE,1NZ-FXE
