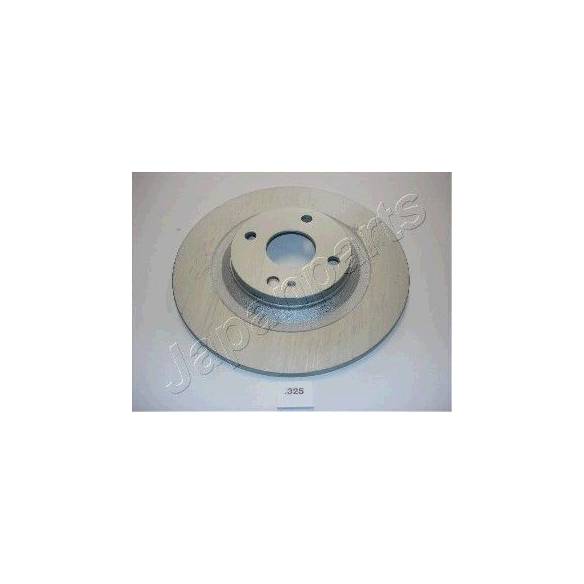

Datos de la referencia:
Lado de montaje: Eje trasero
corona de agujeros - Ø [mm]: 55 mm
Altura [mm]: 35 mm
Diámetro [mm]: 275,5 mm
Espesor de disco de frenos [mm]: 10 mm
Espesor mínimo [mm]: 9 mm
Tipo de disco de frenos: Macizo
Referencias OEM:
MAZDA: N06Y26251, N06Y26251A, N06Y26251B, N0YY26251, N0YY26251A, N0YY26251B
Intercambiabilidades:
A.B.S.: 17097,17097,17097
AP: 15040,15040 V,15040,15040,15040 V,15040,15040 V,15040,15040,15040 V,15040 V,15040 V
APEC braking: DSK2579,DSK2579,DSK2579,DSK2579,DSK2579,DSK2579
ASHIKA: 61-03-325,61-03-325,61-03-325,61-03-325,61-03-325,61-03-325
ASHUKI: M606-44,M606-44
BENDIX: 521408,521408,521408,521408,521408,521408
BLUE PRINT: ADM54374,ADM54374
BORG & BECK: BBD4650,BBD4650,BBD4650,BBD4650,BBD4650,BBD4650
BRAXIS: AE0487,AE0487
BRECO: BS 6032,BV 6032,BV 6032,BS 6032,BV 6032,BS 6032,BV 6032,BV 6032,BS 6032,BS 6032,BV 6032,BS 6032
BREMBO: 08.C135.10,08.C135.10,08.C135.11,08.C135.10,08.C135.11,08.C135.10,08.C135.10,08.C135.11,08.C135.11,08.C135.11,08.C135.10,08.C135.11
BREMSI: DBC593S,DBA135S,DBA135S,DBC593S,DBC593S,DBA135S
COMLINE: ADC0454,ADC0454,ADC0454,ADC0454,ADC0454
DON: PCD15002,PCD15002,PCD15002,PCD15002,PCD15002,PCD15002
FERODO: DDF2593C,DDF135,DDF2593C,DDF135,DDF2593C,DDF135
FREMAX: BD-3257,BD-3257,BD-3257,BD-3257,BD-3257,BD-3257
HELLA: 8DD 355 116-071,8DD 355 116-071,8DD 355 116-071,8DD 355 116-071,8DD 355 116-071,8DD 355 116-071
HELLA PAGID: 8DD 355 116-071,8DD 355 116-071,8DD 355 116-071,8DD 355 116-071,8DD 355 116-071,8DD 355 116-071
JAPKO: 61325,61325,61325,61325,61325,61325
JURID: 562561JC,562561JC,562561JC,561146J,563172JC,562561JC,562561JC,563172JC,561146J,563172JC,562561JC,561146J
KAISHIN: CBR433,CBR433,CBR433,CBR433,CBR433,CBR433
KAVO PARTS: BR-4779-C,BR-4779-C,BR-4779-C,BR-4779-C,BR-4779-C,BR-4779-C
KAWE: 61379 00,61379 00,61379 00,61379 00,61379 00,61379 00
MINTEX: MDC2073,MDC2073,MDC2073,MDC2073,MDC2073,MDC2073
MOTAQUIP: LVBD1277Z,LVBD1277Z
PROTECHNIC: PRD5399,PRD5399,PRD5399,PRD5399,PRD5399,PRD5399
REMSA: 61379.00,61379.00,61379.00,61379.00,61379.00,61379.00
REMY: RAD2025,RAD2025,RAD2025C,RAD2025,RAD2025C,RAD2025,RAD2025,RAD2025C,RAD2025C,RAD2025C,RAD2025,RAD2025C
ROADHOUSE: 61379.00,61379.00,61379.00,61379.00,61379.00,61379.00
STELLOX: 6020 1671-SX,6020 1671-SX,6020 1671-SX
STOP: 561146S,561146S,561146S
TEXTAR: 92188303,92188303,92188303,92188303,92188303,92188303
VALEO: 197710,197710,197710,197710,197710,197710
WOKING: D61379.00,D61379.00,D61379.00,D61379.00,D61379.00,D61379.00
Compatibilidades:
MAZDA:
MX-5 II (NB) (01/1998-10/2005):
1.6 16V 110CV (05/1998-10/2005) 200510 Gasolina (B6MC)
1.6 16V 110CV (05/1998-10/2005) 200510 Gasolina (B6MU)
1.8 16V 140CV (05/1998-10/2005) 200510 Gasolina (BP-ZE)
1.8 16V 146CV (11/2000-10/2005) 200510 Gasolina (BP-ZE)
1.8 16V 146CV (11/2000-10/2005) 200510 Gasolina (BPD)
1.8 16V 139CV (11/2000-10/2005) 200510 Gasolina (BPD)
Motores MAZDA: B6MC,B6MU,BP-ZE,BPD
