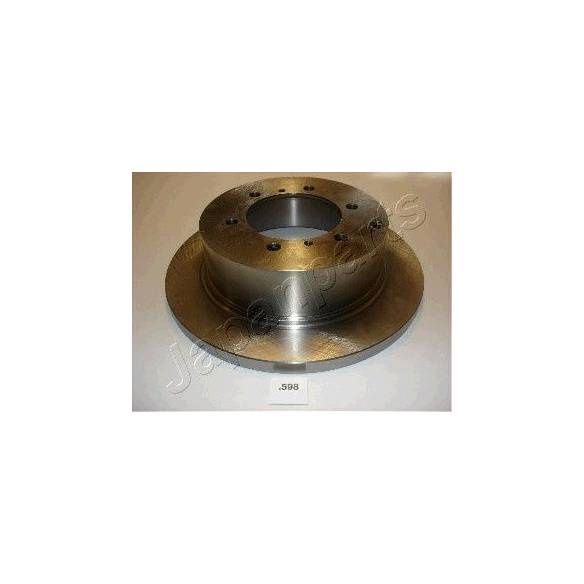

Datos de la referencia:
Lado de montaje: Eje trasero
corona de agujeros - Ø [mm]: 108 mm
Altura [mm]: 84,4 mm
Diámetro [mm]: 314,7 mm
Espesor de disco de frenos [mm]: 18 mm
Espesor mínimo [mm]: 16 mm
Tipo de disco de frenos: Macizo
Referencias OEM:
MITSUBISHI: MB618797
Intercambiabilidades:
ADVICS: D6R517B
AKEBONO: BN-0736E,BN-0736
AP: 14692,14692 V
APEC braking: DSK2015
ASHIKA: 61-05-598
ASHUKI: C658-01
ATE: 24.0118-0140.1
BENDIX: 520475
BLUE PRINT: ADC44335
BORG & BECK: BBD5118
BOSCH: 0 986 478 713
BRAXIS: AD0404
BRECO: BS 7551,BV 7551
BREMBO: 08.7106.10,08.7106.11
BREMSI: DBA715S
CIFAM: 800-464
COMLINE: AND6140,ADC0327
DELPHI: BG3105
DENCKERMANN: B130136
DJ PARTS: BD1029
DON: PCD14562
Dr!ve-: DP1010.11.1164
E.T.F.: 19-8797
EUROBRAKE: 5815203022
FARCOM: 230912
FERODO: DDF715
FREMAX: BD-8797
fri.tech.: BD0111
FRIGAIR: DC16.105
FTE: BS4773
GIRLING: 6040754
HELLA: 8DD 355 106-221
HELLA PAGID: 8DD 355 106-221
HERTH-BUSS JAKOPARTS: J3315009
IPS Parts: IBP-1598
JAPKO: 61598
JP GROUP: 3963200200
JURATEK: MIT110
JURID: 562380JC,562380J,562114J,562380JC-1
KAISHIN: CBR248
KAVO PARTS: BR-5733-C
KAWE: 6552 00
LPR: D1331P
MAGNETI MARELLI: 360406086100
MAPCO: 15544
MASTER-SPORT: 24011801301-PCS-MS,24011801301-SET-MS
MAXGEAR: 19-1174,19-1174SPORT
MAXTECH: 855052.0080,855052.0060,855052.6980,855052.0000,855052.6880,855052.6060
METELLI: 23-0464
MEYLE: 32-15 523 0003,32-15 523 0003/PD
MINTEX: MDC952
MOTAQUIP: LVBD1045Z
NATIONAL: NBD635
NIPPARTS: J3315009
NK: 313022,203022
NPS: M331I09
OPEN PARTS: BDA1790.10
OPTIMAL: BS-5520,BS-5520C
PARTS-MALL: PRG-002
PROTECHNIC: PRD5182
RAICAM: RD00339
REMSA: 6552.00
REMY: RAD1721C,RAD1721
ROADHOUSE: 6552.00
sbs: 1815313022,1815203022
ST-TEMPLIN: 53.111.19610,53.110.19610
STELLOX: 6020-3022-SX
STOP: 562380S
TEXTAR: 92093100
TRISCAN: 8120 42120
TRUSTING: DF111
TRW: DF4075
VEMA: 98424
WOKING: D6552.00
Compatibilidades:
MITSUBISHI:
PAJERO II (V3_W, V2_W, V4_W) (12/1990-05/2001):
2.5 TD 4WD (V24C, V24W) 99CV (12/1990-10/1999) 199910 Diésel (4D56 TD)
3.0 V6 4WD (V23W, V43W, V23C) 150CV (12/1990-12/1995) 199512 Gasolina (6G72 (SOHC 12V))
3.5 V6 24V (V25W, V45W) 208CV (06/1994-10/1999) 199910 Gasolina (6G74 (DOHC 24V))
3.5 V6 24V (V25W, V45W) 208CV (06/1994-10/1999) 199910 Gasolina (6G74 (SOHC 24V))
3.0 V6 24V (V43W, V23W) 181CV (06/1994-05/1997) 199705 Gasolina (6G72 (SOHC 24V))
2.4 (V21W, V21C) 112CV (04/1991-10/1999) 199910 Gasolina (4G64 (12V))
3.5 V6 24V All-wheel Drive (V45W, V25W) 194CV (07/1997-06/2000) 200006 Gasolina (6G74 (DOHC 24V))
3.5 V6 24V All-wheel Drive (V45W, V25W) 194CV (07/1997-06/2000) 200006 Gasolina (6G74 (SOHC 24V))
(OTRAS VERSIONES ...)
PAJERO II Canvas Top (V2_W, V4_W) (12/1990-04/2000):
2.5 TD 4WD (V24C, V24W) 99CV (12/1990-04/2000) 200004 Diésel (4D56 TD)
3.0 V6 (V23W, v43W, V23C) 150CV (12/1990-12/1995) 199512 Gasolina (6G72 (SOHC 12V))
3.0 V6 24V (V23W, V23C) 181CV (06/1994-04/2000) 200004 Gasolina (6G72 (SOHC 24V))
2.4 (V41W, V21W, V21C) 112CV (04/1991-04/2000) 200004 Gasolina (4G64 (12V))
PAJERO SPORT I (K7_, K9_) (07/1996-):
2.5 TD (K94W) 99CV (11/1998-) Diésel (4D56 T)
2.5 TD (K94W, K74T) 115CV (07/2002-) Diésel (4D56 T)
3.0 V6 (K96W) 170CV (06/2000-) Gasolina (6G72 (SOHC 24V))
GALLOPER (JK-01) (09/1998-12/2003):
2.5 TD intercooler 99CV (09/1998-12/2003) 200312 Diésel (D4BH)
2.5 TD 88CV (09/1998-12/2003) 200312 Diésel (D4BF)
L 400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W) (06/1994-04/2007):
2.0 16V (PA3V/W, PB3V, PA3W) 115CV (05/1995-05/2000) 200005 Gasolina (4G63 (SOHC 16V))
2.4 i 4WD (PD4V/W) 132CV (05/1995-05/2000) 200005 Gasolina (4G64 (16V))
2.5 TD (PA5V/W, PB5V) 99CV (05/1995-05/2000) 200005 Diésel (4D56 TD)
2.5 TD 4WD (PD5V/W) 99CV (05/1995-05/2000) 200005 Diésel (4D56 TD)
2500 TD 87CV (05/1995-06/2005) 200506 Diésel (4D56 T)
2.4 4WD 128CV (09/1996-06/2005) 200506 Gasolina (4G64 (16V))
L 400 Box (PD_W, PC_W, PB_V, PA_W, PA_V) (12/1994-04/2007):
2500 TD (PD5W, PD5V, PA5W, PA5V) 87CV (09/1996-06/2005) 200506 Diésel (4D56 T)
Motores MITSUBISHI: 4D56 TD,6G72 (SOHC 12V),6G74 (DOHC 24V),6G74 (SOHC 24V),6G72 (SOHC 24V),4G64 (12V),4D56 T,D4BH,D4BF,4G63 (SOHC 16V),4G64 (16V), ...
