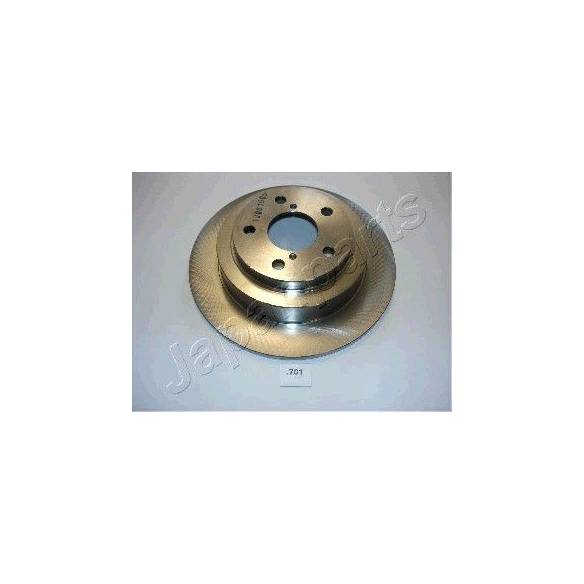

Datos de la referencia:
Lado de montaje: Eje trasero
corona de agujeros - Ø [mm]: 58 mm
Altura [mm]: 67,7 mm
Diámetro [mm]: 265,4 mm
Espesor de disco de frenos [mm]: 10 mm
Espesor mínimo [mm]: 8,5 mm
Tipo de disco de frenos: Macizo
Referencias OEM:
SUBARU: 26310AA040, 26310AA050, 26310AA051, 26700FE010, 26700FE030, 26700FE080, 26710AC020
Intercambiabilidades:
A.B.S.: 16139
ABE: C47001ABE,C47001ABE,C47001ABE,C47001ABE,C47001ABE
AKEBONO: BN-0504,BN-0504,BN-0504E,BN-0504,BN-0504,BN-0504E,BN-0504E,BN-0504E
AP: 14665 V,14665 V,14665 E,14665 V,14665 E,14665 V,14665 V,14665 E,14665 E,14665 E
APEC braking: DSK550,DSK550,DSK550,DSK550,DSK550
ASHIKA: 61-07-701,61-07-701,61-07-701,61-07-701,61-07-701,61-07-701,61-07-701
ATE: 24.0110-0237.1,24.0110-0237.1,24.0110-0237.1,24.0110-0237.1,24.0110-0237.1,24.0110-0237.1
BENDIX: 520251,520251,520251,520251,520251,520251
BLUE PRINT: ADS74307,ADS74307,ADS74307,ADS74307,ADS74307,ADS74307
BORG & BECK: BBD5047,BBD5047,BBD5047,BBD5047,BBD5047,BBD5047,BBD5047
BRAXIS: AE0493
BRECO: BS 7519,BV 7519,BV 7519,BV 7519,BS 7519,BS 7519,BS 7519,BS 7519,BV 7519,BV 7519
BREMBO: 08.6897.14,08.6897.14,08.6897.11,08.6897.11,08.6897.14,08.6897.14,08.6897.14,08.6897.11,08.6897.11,08.6897.11
BREMSI: DBA678S,DBA678S,DBA678S,DBA678S,DBA678S,DBA678S,DBA678S
COMLINE: ADC0811V,AND6454,ADC0809,AND6454,ADC0809,AND6454,AND6454,AND6340,ADC0809,AND6454,ADC0809,AND6454,ADC0809,ADC0809,ADC0809,AND6454
DJ PARTS: BD1071,BD1071,BD1071,BD1071,BD1071
DON: PCD13152,PCD13152,PCD13152,PCD13152,PCD13152,PCD13152,PCD13152
Dr!ve-: DP1010.11.1095,DP1010.11.1095,DP1010.11.1095,DP1010.11.1095,DP1010.11.1095
E.T.F.: 19-0034,19-0034,19-0034
EUROBRAKE: 5815204404,5815204404,5815204404,5815204404,5815204404,5815204404
FARCOM: 230835,230835,230835,230835,230835
FEBI BILSTEIN: 28153,28153,28153,28153,28153
FERODO: DDF678C,DDF678C,DDF678C,DDF678C,DDF678C,DDF678C,DDF678C
FREMAX: BD-0034,BD-0034,BD-0034,BD-0034,BD-0034,BD-0034
FRIGAIR: DC24.101,DC24.101,DC24.101,DC24.101
GIRLING: 6030924,6030924,6030924,6030924,6030924,6030924,6030924
HELLA: 8DD 355 105-331,8DD 355 105-331,8DD 355 105-331,8DD 355 105-331,8DD 355 105-331,8DD 355 105-331,8DD 355 105-331
HELLA PAGID: 8DD 355 105-331,8DD 355 105-331,8DD 355 105-331,8DD 355 105-331,8DD 355 105-331,8DD 355 105-331,8DD 355 105-331
JAPKO: 61701,61701,61701,61701,61701,61701,61701
JP GROUP: 4663100100
JURATEK: SUB101,SUB101,SUB101,SUB101
JURID: 561735J,561735JC,561735JC,561735JC,561735J,561735JC,561735J,561735J,561735JC,561735JC,561735J,561735JC,561735J,561735J
KAISHIN: CBR242,CBR242,CBR242,CBR242,CBR242
KAMOKA: 1031356,1031356,1031356,1031356,1031356
KAVO PARTS: BR-8209-C,BR-8209-C,BR-8209-C,BR-8209-C,BR-8209-C,BR-8209-C
KAWE: 6398 00,BDR1492.10,6398 00,6398 00,BDR1492.10,BDR1492.10,BDR1492.10,6398 00,6398 00
KLAXCAR FRANCE: 25043z,25043z,25043z,25043z,25043z
LPR: S4101P,S4101P,S4101P,S4101P,S4101P,S4101P,S4101P
MAPCO: 25581,25581
MASTER-SPORT: 24011002371SE-SET-MS,24011002371SER-PCS-MS,24011002371SER-PCS-MS,24011002371SER-PCS-MS,24011002371SE-SET-MS,24011002371SER-PCS-MS,24011002371SER-PCS-MS,24011002371SEL-PCS-MS,24011002371SEL-PCS-MS,24011002371SEL-PCS-MS,24011002371SER-PCS-MS,24011002371SEL-PCS-MS,24011002371SEL-PCS-MS,24011002371-PCS-MS,24011002371-PCS-MS,24011002371-SET-MS,24011002371-SET-MS,24011002371-PCS-MS,24011002371-SET-MS,24011002371SEL-PCS-MS,24011002371-PCS-MS,24011002371-SET-MS,24011002371-PCS-MS,24011002371-SET-MS,24011002371SE-SET-MS,24011002371SE-SET-MS,24011002371SE-SET-MS,24011002371-PCS-MS,24011002371-SET-MS,24011002371SE-SET-MS
MAXGEAR: 19-1366SPORT,19-1366SPORT,19-1366SPORT,19-1366SPORT,19-1366SPORT,19-1366SPORT,19-1366SPORT
MAXTECH: 863306.6060,863306.0080,863306.0000,863306.6880,863306.0080,863306.0060,863306.6980,863306.6060,863306.0060,863306.6980,863306.0000,863306.6880,863306.0080,863306.0000,863306.6880,863306.6060,863306.0060,863306.6980
METZGER: 6110110,6110110,6110110,6110110,6110110,6110110,6110110
MEYLE: 34-15 523 0000/PD,34-15 523 0000/PD,34-15 523 0000,34-15 523 0000,34-15 523 0000,34-15 523 0000,34-15 523 0000,34-15 523 0000/PD,34-15 523 0000/PD,34-15 523 0000,34-15 523 0000/PD,34-15 523 0000/PD,34-15 523 0000,34-15 523 0000/PD
MINTEX: MDC801,MDC801,MDC801,MDC801,MDC801,MDC801,MDC801
MOTAQUIP: LVBD939Z,LVBD939Z,LVBD939Z
NATIONAL: NBD540,NBD540,NBD540,NBD1204,NBD540,NBD540
NK: 204404,204404,314404,204404,314404,204404,314404,204404,314404,204404,314404,314404
NPS: S331U08,S331U08,S331U08,S331U08,S331U08,S331U08,S331U08
OPTIMAL: BS-3980C,BS-3980,BS-3980C,BS-3980C,BS-3980,BS-3980C,BS-3980C,BS-3980,BS-3980,BS-3980C,BS-3980,BS-3980,BS-3980,BS-3980C
PROTECHNIC: PRD5165,PRD5165,PRD5165,PRD5165,PRD5165
RAICAM: RD00753,RD00753,RD00753,RD00753,RD00753,RD00753
REMSA: 6398.00,6398.00,6398.00,6398.00,6398.00
REMY: RAD2035C,RAD2035C,RAD2035,RAD2035,RAD2035,RAD2035C,RAD2035C,RAD2035C,RAD2035C,RAD2035,RAD2035,RAD2035,RAD2035,RAD2035C
ROADHOUSE: 6398.00,6398.00,6398.00,6398.00,6398.00
SAKURA: 6057600,6057600,6057600,6057600,6057600,6057600
sbs: 1815314404,1815204404,1815204404,1815314404,1815314404,1815204404,1815204404,1815314404,1815204404,1815204404,1815314404,1815314404
ST-TEMPLIN: 53.110.26450,53.110.26450,53.111.26450,53.110.26450,53.111.26450,53.110.26450,53.111.26450,53.111.26450,53.111.26450,53.110.26450,53.111.26450,53.110.26450
STELLOX: 6020-1125K-SX,6020-1125-SX,6020-1125-SX,6020-1125K-SX,6020-1125-SX,6020-1125K-SX,6020-1125-SX,6020-1125K-SX,6020-1125K-SX,6020-1125K-SX,6020-1125K-SX
STOP: 561735S,561735S,561735S,561735S,561735S,561735S,561735S
SWAG: 87 92 8153,87 92 8153,87 92 8153,87 92 8153,87 92 8153
TEXTAR: 92082000,92082000,92082000,92082000,92082000,92082000,92082000
TRW: DF3092,DF3092,DF3092,DF3092,DF3092,DF3092,DF3092
VEMA: 98525,98525
WOKING: D6398.00,D6398.00,D6398.00,D6398.00,D6398.00
Compatibilidades:
SUBARU:
LEGACY II (BD) (01/1994-10/1999):
2.0 i 116CV (09/1994-03/1999) 199903 Gasolina (EJ20E)
2.0 i 4WD 116CV (09/1994-03/1999) 199903 Gasolina (EJ201)
2.0 i 4WD 116CV (09/1994-03/1999) 199903 Gasolina (EJ20E)
2.2 i 4WD (BD7) 128CV (09/1994-03/1999) 199903 Gasolina (EJ22 EMPI)
2.5 i 4WD 150CV (06/1996-03/1999) 199903 Gasolina (EJ25D)
2.2 i 4WD 131CV (06/1996-03/1999) 199903 Gasolina (EJ22 EMPI)
LEGACY I Estate (BC, BJF) (01/1989-08/1994):
1800 4WD 103CV (01/1989-07/1994) 199407 Gasolina (EJ18 SPI)
2000 4WD 116CV (09/1991-07/1994) 199407 Gasolina (EJ20 EMPI)
2200 Super 4WD 136CV (01/1989-07/1994) 199407 Gasolina (EJ22 EMPI)
2000 116CV (09/1991-12/1993) 199312 Gasolina (EJ20 EMPI)
LEGACY I (BC) (01/1989-12/1995):
1800 4WD 103CV (01/1989-09/1991) 199109 Gasolina (EJ18 SPI)
2000 4WD 116CV (08/1991-07/1994) 199407 Gasolina (EJ20 EMPI)
2200 4WD (BC6, BC7) 136CV (01/1989-07/1994) 199407 Gasolina (EJ22 EMPI)
IMPREZA Saloon (GC) (08/1992-09/2001):
1.6 i AWD 90CV (08/1992-12/2000) 200012 Gasolina (EJ16)
1.8 i AWD (GC6) 103CV (08/1992-12/2000) 200012 Gasolina (EJ18)
1.8 i AWD (GC6) 103CV (08/1992-12/2000) 200012 Gasolina (EJ18E)
2.0 Turbo GT AWD (GC8) 211CV (03/1994-12/2000) 200012 Gasolina (EJ20 (Turbo))
2.0 i AWD (GC7) 115CV (10/1995-12/2000) 200012 Gasolina (EJ201)
2.0 i AWD (GC7) 115CV (10/1995-12/2000) 200012 Gasolina (EJ20E)
1.6 i (GC3) 90CV (08/1992-12/2000) 200012 Gasolina (EJ16)
1.6 i (GC3) 95CV (06/1998-12/2000) 200012 Gasolina (EJ161)
(OTRAS VERSIONES ...)
IMPREZA Coupe (GFC) (01/1993-12/2000):
2.0 AWD 115CV (12/1995-12/2000) 200012 Gasolina (EJ201)
2.0 AWD 115CV (12/1995-12/2000) 200012 Gasolina (EJ20E)
1.6 90CV (12/1996-12/2000) 200012 Gasolina (EJ161)
1.6 90CV (12/1996-12/2000) 200012 Gasolina (EJ16E)
1.6 AWD 90CV (12/1996-12/2000) 200012 Gasolina (EJ161)
2.0 Turbo AWD 211CV (12/1996-12/2000) 200012 Gasolina (EJ20G)
FORESTER (SF_) (03/1997-09/2002):
2.0 AWD (SF5) 122CV (08/1997-09/2002) 200209 Gasolina (EJ202)
2.0 S Turbo AWD (SF5) 170CV (06/1998-04/2001) 200104 Gasolina (EJ205)
2.0 AWD (SF5) 125CV (06/1998-09/2002) 200209 Gasolina (EJ202)
2.0 S Turbo AWD (SF5) 177CV (04/2001-09/2002) 200209 Gasolina (EJ205)
IMPREZA Estate (GF) (08/1992-12/2000):
1.6 i AWD 90CV (08/1992-12/2000) 200012 Gasolina (EJ16)
1.8 i AWD (GF6) 103CV (08/1992-12/2000) 200012 Gasolina (EJ18)
2.0 i Turbo AWD (GF8) 211CV (03/1994-12/2000) 200012 Gasolina (EJ20 (Turbo))
1.6 i (GF3) 95CV (06/1998-12/2000) 200012 Gasolina (EJ161)
2.0 i 16V AWD 125CV (06/1998-12/2000) 200012 Gasolina (EJ201)
2.0 i 16V AWD 125CV (06/1998-12/2000) 200012 Gasolina (EJ20E)
1.6 i AWD 95CV (06/1998-12/2000) 200012 Gasolina (EJ161)
2.0 i AWD (GF8) 116CV (12/1995-12/2000) 200012 Gasolina (EJ201)
(OTRAS VERSIONES ...)
LEGACY II Estate (BG) (02/1994-12/1999):
2.0 i 116CV (09/1994-11/1998) 199811 Gasolina (EJ20 EMPI)
2.0 i 4WD 116CV (09/1994-11/1998) 199811 Gasolina (EJ201)
2.0 i 4WD 116CV (09/1994-11/1998) 199811 Gasolina (EJ20E)
2.2 i 4WD (BG7) 128CV (02/1994-12/1998) 199812 Gasolina (EJ22 EMPI)
2.2 i 4WD 131CV (06/1996-11/1998) 199811 Gasolina (EJ22 EMPI)
IMPREZA Saloon (GD) (09/1999-06/2009):
2.0 i AWD (GD9) 125CV (12/2000-06/2009) 200906 Gasolina (EJ201)
2.0 i R AWD (GD9) 160CV (09/2005-03/2007) 200703 Gasolina (EJ204)
IMPREZA Estate (GG) (10/2000-12/2008):
2.0 AWD 125CV (12/2000-12/2007) 200712 Gasolina (EJ201)
2.0 i R AWD (GG9) 160CV (09/2005-06/2007) 200706 Gasolina (EJ204)
FORESTER (SG_) (06/2002-12/2012):
2.0 AWD 125CV (06/2002-05/2005) 200505 Gasolina (EJ201)
2.0 S Turbo AWD 177CV (09/2002-05/2005) 200505 Gasolina (EJ205)
2.5 AWD (SG9) 211CV (12/2003-05/2005) 200505 Gasolina (EJ25)
2.0 X AWD 158CV (06/2005-05/2008) 200805 Gasolina (EJ201)
2.0 X AWD 158CV (06/2005-05/2008) 200805 Gasolina (EJ204)
2.5 XT AWD (SG9) 230CV (06/2005-05/2008) 200805 Gasolina (EJ255)
2.5 AWD (BL9) 165CV (09/2003-04/2009) 200904 Gasolina (EJ25)
3.0 R AWD (BPE) 245CV (09/2003-04/2009) 200904 Gasolina (EZ30)
Motores SUBARU: EJ20E,EJ201,EJ22 EMPI,EJ25D,EJ18 SPI,EJ20 EMPI,EJ16,EJ18,EJ18E,EJ20 (Turbo),EJ161, ...
