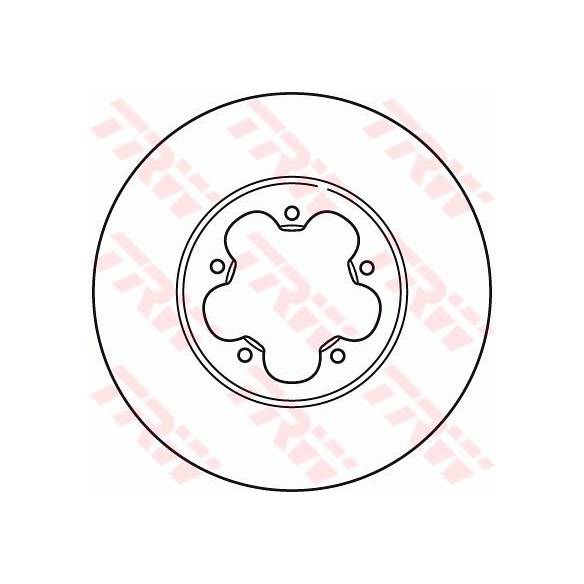

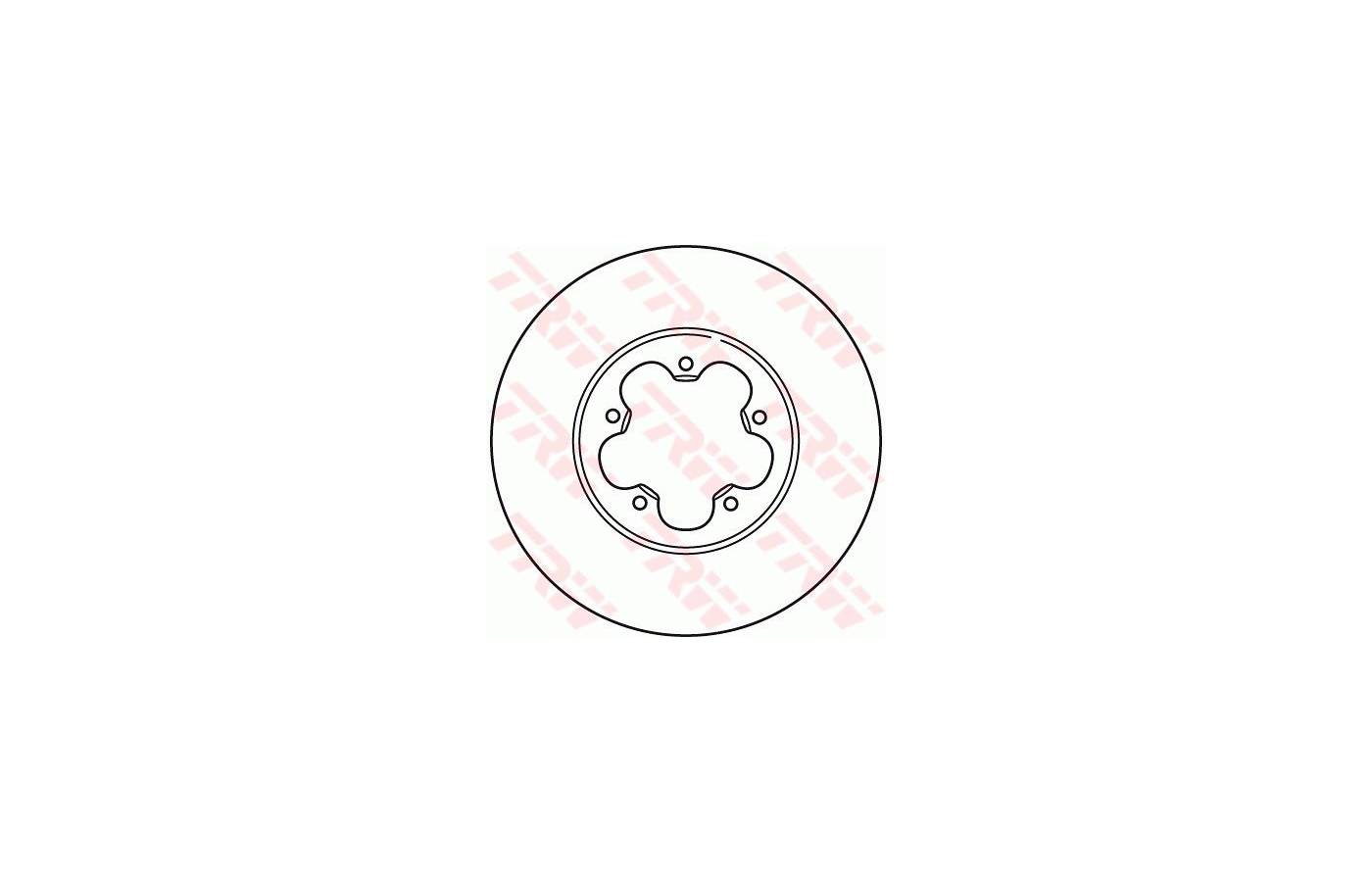

Disco de freno FORD TRANSIT Bus (FD - FB - FS - FZ - FC ) (04/2006-) - DF2389S

Datos de la referencia:

Superficie: barnizado

Tipo de disco de frenos: ventilado

Diámetro [mm]: 280 mm

Espesor de disco de frenos [mm]: 28 mm

Espesor mínimo [mm]: 25 mm

Altura [mm]: 54 mm

Diámetro de centrado [mm]: 93 mm

corona de agujeros - Ø [mm]: 111,5 mm

Medida de rosca: M10

Pintura: negro

SVHC: No hay información disponible, diríjase al fabricante.

Referencias OEM:

FORD: 6C11-1125-B1B, 6C11-1125-BB, 1371394, 1503290, 1547061

Intercambiabilidades:

A.B.S.: 17743,17743,17743

ABE: C3G037ABE

AKEBONO: BN-0302E,BN-0302E,BN-0302E,BN-0302,BN-0302,BN-0302

AKRON-MALÒ: 1110121,1110121,1110121

AP: 25266,25266,25266

APEC braking: DSK2425,DSK2425,DSK2425

ATE: 24.0128-0156.1,24.0128-0156.1,24.0128-0156.1,24.0128-0156.1,24.0128-0156.1

AUTOMEGA: 120008110,120008110,120008110

AUTOMOTOR France: PDC0279,PDC0279,PDC0279

BARUM: BAR28156,BAR28156,BAR28156,BAR28156,BAR28156

BENDIX: 521873,521873

BORG & BECK: BBD4563,BBD4563,BBD4563

BOSCH: 0 986 479 392,0 986 479 C09,0 986 479 392,0 986 479 C09,0 986 479 392,0 986 479 C09

BRAXIS: AE0141,AE0141

BRECK: BR 407 VA100,BR 407 VA100,BR 407 VA100

BRECO: BS 8876,BS 8876,BS 8876

BREMBO: 09.A529.10,09.A529.10,09.A529.10

BREMSI: DBB554V,DBB554V,DBB554V

BSG: BSG 30-210-008,BSG 30-210-008,BSG 30-210-008

CAR: HPD 1419,142.1419,142.1419,HPD 1419

CHAMPION: 562541CH,562541CH,562541CH

CIFAM: 800-898,800-898

COMLINE: AND6053,ADC1234V,ADC1234V,AND6053,ADC1234V,AND6053

DELPHI: BG4007,BG4007,BG4007

DENCKERMANN: B130634,B130634,B130634

DIAMAX: N08419,N08419,N08419

DJ PARTS: BD2068,BD2068,BD2068

DODA: 1070100123

Dr!ve-: DP1010.11.0521,DP1010.11.0521,DP1010.11.0521

DT Spare Parts: 13.31001,13.31001,13.31001,13.31001,13.31001

E.T.F.: 19-6057,19-6057,19-6057

EUROBRAKE: 5815202575,5815202575,5815202575

FAST: FT31113

FERODO: DDF1554C,DDF1554C,DDF1554C

FREMAX: BD-5632,BD-5632,BD-5632

fri.tech.: BD1007,BD1007

FTE: BS7112,BS7112B,BS7112,BS7112,BS7112B,BS7112B

GIRLING: 6048205,6023895,6023895,6023895,6023895,6023895

HELLA: 8DD 355 113-261,8DD 355 113-261,8DD 355 128-621,8DD 355 128-621,8DD 355 113-261,8DD 355 128-621

HELLA PAGID: 8DD 355 128-621,8DD 355 113-261,8DD 355 128-621,8DD 355 113-261,8DD 355 113-261,8DD 355 128-621

ICER: 78BD5632-2,78BD5632-2,78BD5632-2

JP GROUP: 1563104400,1563104400,1563104400

JURATEK: FOR117,FOR117,FOR117

JURID: 562541JC,562541JC,562541JC

KAMOKA: 103272,103272,103272,103272,103272

KAWE: 61021 10,61021 10,61021 10

KEY PARTS: KBD4563,KBD4563,KBD4563

KRAFT AUTOMOTIVE: 6042005,6042005,6042005,6042005,6042005

LPR: F1017VR,F1017VR,F1017V,F1017V,F1017VR,F1017V

MAGNETI MARELLI: 360406105300,360406105300,360406105300

MASTER-SPORT: 24012801561-SET-MS,24012801561-SET-MS,24012801561-SET-MS,24012801561-SET-MS,24012801561-PCS-MS,24012801561-PCS-MS,24012801561-PCS-MS,24012801561-PCS-MS,24012801561-PCS-MS,24012801561-SET-MS

MAXGEAR: 19-1333SPORT,19-1333SPORT,19-1333MAX,19-1333SPORT,19-1333MAX,19-1333,19-1333MAX,19-1333

MAXTECH: 827035.6060,827035.0060,827035.6980,827035.0080,827035.0000,827035.6880,827035.0060,827035.6980,827035.6060,827035.0000,827035.6880,827035.0080

METELLI: 23-0898,23-0898

METZGER: 6110117,6110117,6110117,6110117

MEYLE: 715 521 7043,715 521 7043

MINTEX: MDC1759,MDC1759C,MDC1759,MDC1759C,MDC1759,MDC1759C

MOTAQUIP: LVBD1183Z,LVBD1183Z,LVBD1183Z

NATIONAL: NBD1388,NBD1388,NBD1388

NK: 202575,312575,312575,312575,202575,202575

OPEN PARTS: BDA2368.20,BDA2368.20,BDA2368.20

OPTIMAL: BS-8100HC,BS-8100,BS-8100HC,BS-8100HC,BS-8100,BS-8100,BS-8100,BS-8100HC

PROTECHNIC: PRD2335

QUARO: QD4845,QD4845,QD4845

QUINTON HAZELL: BDC5523,BDC5523

R BRAKE: 78RBD25632,78RBD25632,78RBD25632

RAICAM: RD00275,RD00275,RD00275

REMSA: 61021.10,61021.10,61021.10

REMY: RAD1368,RAD1368C,RAD1368C,RAD1368,RAD1368,RAD1368C

ROADHOUSE: 61021.10,61021.10,61021.10

RYME: 46044,46044,46044

SASIC: 6106149,6106149

sbs: 1815312575,1815312575,1815202575,1815202575,1815312575,1815202575

STELLOX: 6020-1096VK-SX,6020-1096V-SX,6020-1096V-SX,6020-1096VK-SX,6020-1096V-SX,6020-1096VK-SX,6020-1096V-SX,6020-1096V-SX

TEXTAR: 92151803,92151803,92151803

TRISCAN: 8120 16145C,8120 16145C,8120 16145C

TRUCKFRENOS: TF.28.16.1003,TF.28.16.1003,TF.28.16.1003

TRUSTING: DF1007,DF1007

VALEO: 197249,197249,197249

WAGNER: WGR1554-1,WGR1554-1,WGR1554-1

WOKING: D61021.10,D61021.10,D61021.10

ZIMMERMANN: 250.1356.20

Compatibilidades:

FORD:

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (04/2006-):

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFA)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFB)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFC)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFD)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFE)

2.2 TDCi 125CV (10/2011-08/2014) 201408 Diésel (CYFA)

2.2 TDCi 125CV (10/2011-08/2014) 201408 Diésel (CYFB)

2.2 TDCi 125CV (10/2011-08/2014) 201408 Diésel (CYFC)

(OTRAS VERSIONES ...)

TRANSIT Box (FA_ _) (04/2006-):

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFA)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFB)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFC)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFD)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFE)

2.2 TDCi 125CV (10/2011-08/2014) 201408 Diésel (CYFA)

2.2 TDCi 125CV (10/2011-08/2014) 201408 Diésel (CYFB)

2.2 TDCi 125CV (10/2011-08/2014) 201408 Diésel (CYFC)

(OTRAS VERSIONES ...)

TRANSIT Platform/Chassis (FM_ _, FN_ _) (04/2006-08/2014):

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFA)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFB)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFC)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFD)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFE)

2.2 TDCi 125CV (10/2011-08/2014) 201408 Diésel (CYFA)

2.2 TDCi 125CV (10/2011-08/2014) 201408 Diésel (CYFB)

2.2 TDCi 125CV (10/2011-08/2014) 201408 Diésel (CYFC)

(OTRAS VERSIONES ...)

TRANSIT TOURNEO (07/2006-08/2014):

2.2 TDCi 110CV (07/2006-08/2014) 201408 Diésel (QVFA)

2.2 TDCi 131CV (07/2006-08/2014) 201408 Diésel (QWFA)

2.2 TDCi 140CV (10/2007-08/2014) 201408 Diésel (PGFA)

2.2 TDCi 140CV (10/2007-08/2014) 201408 Diésel (PGFB)

2.2 TDCi 140CV (10/2007-08/2014) 201408 Diésel (UHFA)

2.2 TDCi 140CV (10/2007-08/2014) 201408 Diésel (UHFB)

2.2 TDCi 140CV (10/2007-08/2014) 201408 Diésel (UHFC)

2.2 TDCi 115CV (10/2008-08/2014) 201408 Diésel (SRFA)

(OTRAS VERSIONES ...)

Motores FORD: DRFA,DRFB,DRFC,DRFD,DRFE,CYFA,CYFB,CYFC,CYFD,P8FA,P8FB,QVFA,QWFA,PGFA,PGFB,UHFA,UHFB,UHFC,SRFA,SRFB,SRFC,SRFD, ...
