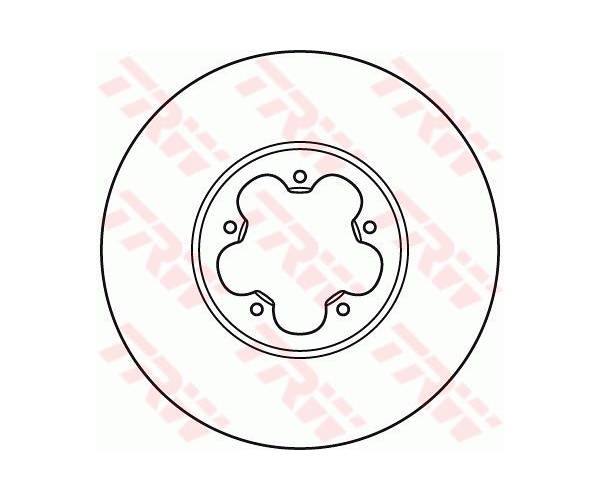

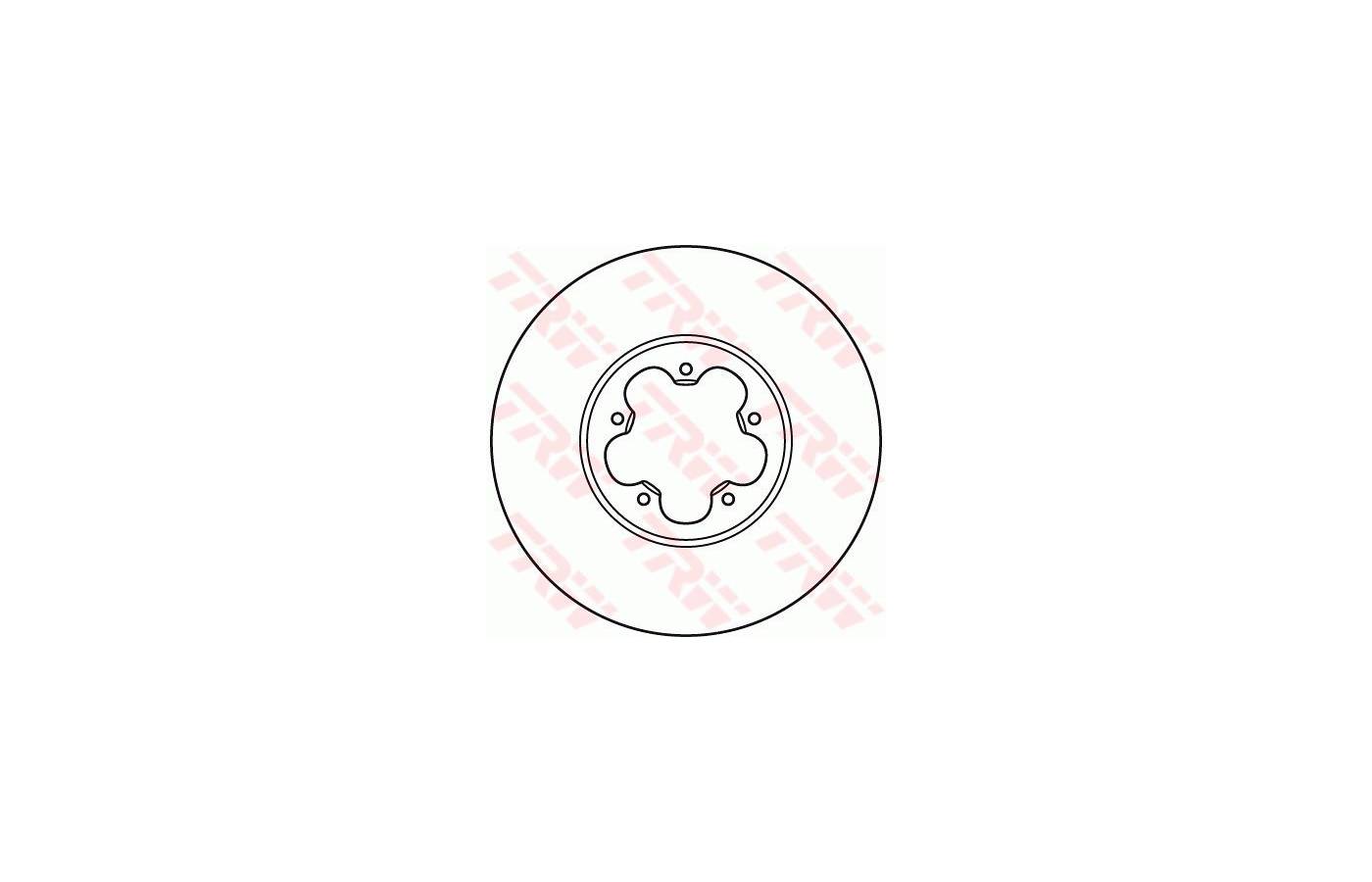

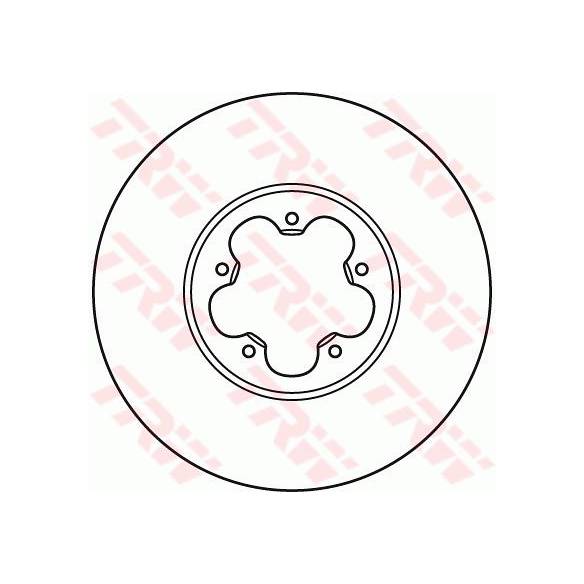

Disco de freno FORD TRANSIT Bus (FD - FB - FS - FZ - FC ) (04/2006-) - DF2390S

Datos de la referencia:

Tipo de disco de frenos: ventilado

Diámetro [mm]: 300 mm

Diámetro de centrado [mm]: 93,1 mm

Altura [mm]: 54,5 mm

Espesor de disco de frenos [mm]: 28 mm

Espesor mínimo [mm]: 25 mm

corona de agujeros - Ø [mm]: 111,5 mm

Superficie: barnizado

Pintura: negro

SVHC: No hay información disponible, diríjase al fabricante.

Referencias OEM:

FORD: 6C11-1125-AA, 1371393, 6C11-1125-AB, 1503287

Intercambiabilidades:

A.B.S.: 17745,17745

ABE: C3G036ABE,C3G036ABE

AKEBONO: BN-0270,BN-0270E,BN-0270,BN-0270E

AKRON-MALÒ: 1110120,1110120

AP: 25158,25158

APEC braking: DSK2427,DSK2427

ASAM: 74885,74885,74885,74885

ATE: 24.0128-0157.1,24.0128-0157.1,24.0128-0157.1

AUTOMEGA: 120008010,120008010

BARUM: BAR28157,BAR28157,BAR28157

BENDIX: 522086,522086

BORG & BECK: BBD4562,BBD4562

BOSCH: 0 986 479 307,0 986 479 307

BRAXIS: AD0196

BRECK: BR 393 VA100,BR 393 VA100

BRECO: BS 8767,BS 8767

BREMBO: 09.A531.10,09.A531.10

BREMSI: DBB555V,DBB555V

CAR: 142.1420,142.1420

CHAMPION: 562540CH,562540CH

CIFAM: 800-899,800-899

COMLINE: AND6052,ADC1232V,ADC1232V,AND6052

DELPHI: BG4006,BG4006

DENCKERMANN: B130336,B130336

DIAMAX: N08418,N08418

DITAS: DFD1015

DJ PARTS: BD2517,BD2517

DODA: 1070100103

Dr!ve-: DP1010.11.0518,DP1010.11.0518,DP1010.11.0518,DP1010.11.0518

DT Spare Parts: 13.31000,13.31000,13.31000,13.31000

E.T.F.: 19-6058,19-6058

EUROBRAKE: 5815202576,5815202576

EUROREPAR: 1618889280,1618889280

FAST: FT31115,FT31115,FT31115,FT31115

FERODO: DDF1555C,DDF1555C

FREMAX: BD-5630,BD-5630

fri.tech.: BD1006,BD1006

FTE: BS7111,BS7111B,BS7111,BS7111B

GIRLING: 6023905,6023905,6048175,6023905,6023905

HELLA: 8DD 355 128-631,8DD 355 113-281,8DD 355 113-281,8DD 355 128-631

HELLA PAGID: 8DD 355 128-631,8DD 355 113-281,8DD 355 113-281,8DD 355 128-631

ICER: 78BD5630-2,78BD5630-2

JP GROUP: 1563104100,1563104100,1563100600,1563100600

JURATEK: FOR119,FOR119

JURID: 562540JC,562540JC-1,562540JC,562540JC-1

KAMOKA: 103273,103273,103273

KAWE: 61022 10,61022 10,61022 10,61022 10

KEY PARTS: KBD4562,KBD4562

KRAFT AUTOMOTIVE: 6042009,6042009,6042009

LPR: F1016V,F1016V

MAGNETI MARELLI: 360406087800,360406087800

MASTER-SPORT: 24012801571-SET-MS,24012801571-SET-MS,24012801571-PCS-MS,24012801571-PCS-MS,24012801571-SET-MS,24012801571-PCS-MS

MAXGEAR: 19-1047SPORT,19-1047MAX,19-1047SPORT,19-1047MAX

MAXTECH: 827033.0000,827033.6880,827033.0080,827033.6060,827033.0060,827033.6980,827033.0080,827033.0000,827033.6880,827033.0060,827033.6980,827033.6060

METELLI: 23-0899,23-0899

METZGER: 6110342,6110342

MEYLE: 715 521 7042,715 521 7042,783 521 7042/PD,783 521 7042/PD

MINTEX: MDC1760C,MDC1760,MDC1760C,MDC1760

MOTAQUIP: LVBD1184Z,LVBD1184Z

NATIONAL: NBD1387,NBD1387

NK: 202576,312576,202576,312576

OPEN PARTS: BDA2369.20,BDA2369.20

OPTIMAL: BS-8102,BS-8102HC,BS-8102HC,BS-8102,BS-8102HC,BS-8102

PROTECHNIC: PRD2332,PRD2332

QUARO: QD9988,QD9988

R BRAKE: 78RBD25630,78RBD25630

RAICAM: RD00276,RD00276

REMSA: 61022.10,61022.10,61022.10,61022.10

REMY: RAD1410,RAD1410C,RAD1410,RAD1410C

RIW: FB789,FB789

ROADHOUSE: 61022.10,61022.10,61022.10,61022.10

RYME: 46046,46046

SASIC: 6106148,6106148

sbs: 1815312576,1815202576,1815312576,1815202576

STELLOX: 6020-1101V-SX,6020-1101VK-SX,6020-1101V-SX,6020-1101V-SX,6020-1101VK-SX,6020-1101V-SX

TEXTAR: 92151903,92151903

TRISCAN: 8120 16147C,8120 16147C

TRUCKFRENOS: TF.28.16.1004,TF.28.16.1000,TF.28.16.1000

TRUSTING: DF1006,DF1006

VALEO: 197054,187151,197054

WAGNER: WGR1555-1,WGR1555-1

WOKING: D61022.10,D61022.10,D61022.10,D61022.10

ZIMMERMANN: 250.1357.20,250.1357.20

Compatibilidades:

FORD:

TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) (04/2006-):

2.2 TDCi 125CV (10/2011-08/2014) 201408 Diésel (CYFA)

2.2 TDCi 125CV (10/2011-08/2014) 201408 Diésel (CYFB)

2.2 TDCi 125CV (10/2011-08/2014) 201408 Diésel (CYFC)

2.2 TDCi 125CV (10/2011-08/2014) 201408 Diésel (CYFD)

2.2 TDCi RWD 100CV (10/2011-08/2014) 201408 Diésel (DRRA)

2.2 TDCi RWD 100CV (10/2011-08/2014) 201408 Diésel (DRRB)

2.2 TDCi RWD 100CV (10/2011-08/2014) 201408 Diésel (DRRC)

2.2 TDCi RWD 125CV (10/2011-08/2014) 201408 Diésel (CYRA)

(OTRAS VERSIONES ...)

TRANSIT Box (FA_ _) (04/2006-):

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFA)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFB)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFC)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFD)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFE)

2.2 TDCi RWD 100CV (10/2011-08/2014) 201408 Diésel (DRRA)

2.2 TDCi RWD 100CV (10/2011-08/2014) 201408 Diésel (DRRB)

2.2 TDCi RWD 100CV (10/2011-08/2014) 201408 Diésel (DRRC)

(OTRAS VERSIONES ...)

TRANSIT Platform/Chassis (FM_ _, FN_ _) (04/2006-08/2014):

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFA)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFB)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFC)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFD)

2.2 TDCi 100CV (10/2011-08/2014) 201408 Diésel (DRFE)

2.2 TDCi RWD 100CV (10/2011-08/2014) 201408 Diésel (DRRA)

2.2 TDCi RWD 100CV (10/2011-08/2014) 201408 Diésel (DRRB)

2.2 TDCi RWD 100CV (10/2011-08/2014) 201408 Diésel (DRRC)

(OTRAS VERSIONES ...)

TRANSIT TOURNEO (07/2006-08/2014):

2.2 TDCi 110CV (07/2006-08/2014) 201408 Diésel (QVFA)

2.2 TDCi 131CV (07/2006-08/2014) 201408 Diésel (QWFA)

2.2 TDCi 140CV (10/2007-08/2014) 201408 Diésel (PGFA)

2.2 TDCi 140CV (10/2007-08/2014) 201408 Diésel (PGFB)

2.2 TDCi 140CV (10/2007-08/2014) 201408 Diésel (UHFA)

2.2 TDCi 140CV (10/2007-08/2014) 201408 Diésel (UHFB)

2.2 TDCi 140CV (10/2007-08/2014) 201408 Diésel (UHFC)

2.2 TDCi 115CV (10/2008-08/2014) 201408 Diésel (SRFA)

(OTRAS VERSIONES ...)

Motores FORD: CYFA,CYFB,CYFC,CYFD,DRRA,DRRB,DRRC,CYRA,CYRB,JXFA,JXFC,H9FD,P8FA,P8FB,QVFA,QWFA,PHFA,PHFC,H9FB,SAFA,SAFB,PGFA, ...
