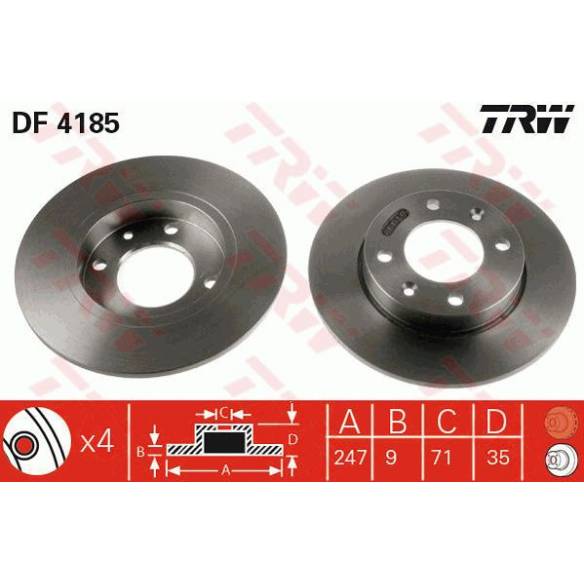

Disco de freno PEUGEOT PARTNER Box (5) (04/1996-12/2015) - DF4185

DISCO DE FRENO TRW: DF4185
EAN: 3322937320127
OEM: 4246 X8, 4246 W9, E 169 198, 4249 90, 4249 53
COMPATIBILIDAD PEUGEOT: PARTNER Box 5 04/1996-12/2015, 307 3A/C 08/2000-, PARTNER ORIGIN Box 5 04/1996-12/2015, 1007 KM 04/2005-, PARTNER Combispace 5F 05/1996-12/2015, 307 SW 3H 03/2002-12/2009, 307 Break 3E 03/2002-12/2009, PARTNER ORIGIN 5F 05/1996-12/2015, 307 CC 3B 03/2003-06/2009, PARTNER ORIGIN Combispace 5F 05/1996-12/2015

Referencia DF4185-51

Últimas unidades en stock

59,96 €

DF4185

Descripción

Datos de la referencia:

Superficie: barnizado

Tipo de disco de frenos: Macizo

Diámetro [mm]: 247 mm

Espesor de disco de frenos [mm]: 9 mm

Espesor mínimo [mm]: 7 mm

Diámetro de centrado [mm]: 71 mm

Altura [mm]: 35 mm

Medida de rosca: 13

corona de agujeros - Ø [mm]: 108 mm

Pintura: negro

SVHC: No hay información disponible, diríjase al fabricante.

Referencias OEM:

CITROËN: 4246 X8, 4246 W9, E 169 198, 4249 90, 4249 53

DONGFENG: 4581000

PEUGEOT: E 169 198, 4249 90, 4246 W9, 4249 52

Intercambiabilidades:

ATE: 24.0109-0137.1,24.0109-0137.1,24.0109-0137.1,24.0109-0137.1,24.0109-0137.1,24.0109-0137.1

BARUM: BAR09137,BAR09137,BAR09137,BAR09137,BAR09137,BAR09137

BOSCH: 0 986 478 608,0 986 478 608,0 986 479 B40,0 986 479 B40,0 986 479 B40,0 986 479 B40,0 986 479 B40,0 986 478 608,0 986 479 B40,0 986 478 608,0 986 478 608,0 986 479 B40,0 986 478 608,0 986 478 608

BREMSI: DBB178S

BSG: BSG 70-210-012,BSG 70-210-012,BSG 70-210-012,BSG 70-210-012,BSG 70-210-012,BSG 70-210-012,BSG 70-210-012,BSG 70-210-012,BSG 70-210-012,BSG 70-210-012

CHAMPION: 562130CH

DENCKERMANN: B130150,B130150,B130150,B130150

E.T.F.: 19-4746,19-4746,19-4746

FERODO: DDF1178C

GIRLING: 6041854,6041854,6041854,6041854,6041854,6041854,6041854,6041854,6041854,6041854

JURID: 562130JC,562130J

KRAFT AUTOMOTIVE: 6055920,6055920,6055920,6055920,6055920,6055920

LEMFÖRDER: 31307 01,31307 01

MAPCO: 15312,15312,15312/2,15312/2,15312/2,15312/2,15312,15312,15312/2,15312

MASTER-SPORT: 24010901371-PCS-MS,24010901371-PCS-MS,24010901371-PCS-MS,24010901371-SET-MS,24010901371-SET-MS,24010901371-SET-MS,24010901371-PCS-MS,24010901371-PCS-MS,24010901371-SET-MS,24010901371-SET-MS,24010901371-PCS-MS,24010901371-SET-MS

MAXTECH: 875616.6060,875616.0080,875616.0000,875616.0080,875616.0080,875616.0080,875616.6880,875616.0080,875616.0060,875616.6980,875616.0060,875616.0060,875616.6060,875616.6980,875616.0060,875616.6980,875616.6980,875616.0060,875616.0000,875616.6980,875616.6880,875616.0060,875616.0000,875616.6060,875616.6880,875616.0000,875616.6880,875616.6980,875616.0000,875616.6880,875616.6060,875616.0000,875616.0080,875616.6060,875616.6060,875616.6880

MEYLE: 11-15 523 0008/PD,11-15 523 0008,11-15 523 0019/PD,11-15 523 0008,11-15 523 0019/PD,11-15 523 0008/PD

STELLOX: 6020-3722-SX,6020-3722K-SX

STOP: 562130S

TOPRAN: 721 182,721 182,721 182,721 182,721 182,721 182

VAICO: V42-40013,V42-40013,V42-40013

WAGNER: WGR1178-1

Compatibilidades:

CITROËN:

BERLINGO / BERLINGO FIRST Box (M_) (07/1996-12/2011):

2.0 HDI 90 (MBRHY, MCRHY) 90CV (12/1999-12/2011) 201112 Diésel (RHY (DW10TD))

1.4 bivalent 65CV (11/2002-12/2011) 201112 CNG (KFW (TU3JP))

1.6 HDI 75 (MB9HW) 75CV (07/2005-12/2011) 201112 Diésel (9HW (DV6BTED4))

1.6 HDI 75 (MB9HW) 75CV (07/2005-12/2011) 201112 Diésel (DV6B)

1.6 HDI 90 (MB9HX, MC9HX) 90CV (07/2005-12/2011) 201112 Diésel (9HX (DV6ATED4))

BERLINGO / BERLINGO FIRST MPV (MF, GJK, GFK) (07/1996-12/2011):

1.6 16V (MFNFU) 109CV (10/2000-12/2011) 201112 Gasolina (NFU (TU5JP4))

1.4 bivalent 65CV (11/2002-12/2011) 201112 CNG (KFW (TU3JP))

1.6 HDI 90 (MF9HX) 90CV (07/2005-05/2008) 200805 Diésel (9HX (DV6ATED4))

XSARA PICASSO (N68) (12/1999-):

1.6 88CV (12/1999-) Gasolina (NFZ (TU5JP))

1.8 16V 115CV (02/2000-) Gasolina (6FZ (EW7J4))

2.0 HDi 90CV (12/1999-) Diésel (RHY (DW10TD))

1.6 95CV (12/1999-) Gasolina (NFV (TU5JP))

2.0 16V 136CV (01/2003-) Gasolina (RFN (EW10J4))

1.6 HDi 109CV (05/2004-) Diésel (9HY (DV6TED4))

1.6 HDi 109CV (05/2004-) Diésel (9HZ (DV6TED4))

1.6 16V 109CV (09/2005-) Gasolina (NFU (TU5JP4))

(OTRAS VERSIONES ...)

C3 I (FC_, FN_) (02/2002-):

1.6 16V 109CV (02/2002-) Gasolina (NFU (TU5JP4))

1.4 16V HDi 90CV (02/2002-) Diésel (8HY (DV4TED4))

1.4 16V 88CV (12/2003-) Gasolina (KFU (ET3J4))

1.6 16V HDi 109CV (09/2005-) Diésel (9HZ (DV6TED4))

1.6 16V HDi 90CV (10/2005-) Diésel (9HX (DV6ATED4))

C3 Pluriel (HB_) (05/2003-):

1.6 109CV (05/2003-) Gasolina (NFU (TU5JP4))

1.4 HDi 68CV (04/2004-) Diésel (8HX (DV4TD))

C2 (JM_) (09/2003-):

1.1 60CV (09/2003-) Gasolina (HFX (TU1JP))

1.4 73CV (09/2003-) Gasolina (KFV (TU3JP))

1.6 109CV (09/2003-) Gasolina (NFU (TU5JP4))

1.4 HDi 68CV (09/2003-) Diésel (8HX (DV4TD))

1.4 HDi 68CV (09/2003-) Diésel (8HZ (DV4TD))

1.6 VTS 122CV (01/2005-) Gasolina (NFS (TU5JP4S))

1.4 16V 90CV (06/2006-) Gasolina (KFU (ET3J4))

1.6 HDi 109CV (09/2005-) Diésel (9HZ (DV6TED4))

C4 Coupe (LA_) (11/2004-12/2013):

1.4 16V 88CV (11/2004-07/2011) 201107 Gasolina (KFU (ET3J4))

1.6 16V 109CV (11/2004-07/2011) 201107 Gasolina (NFU (TU5JP4))

2.0 16V 136CV (11/2004-07/2007) 200707 Gasolina (RFN (EW10J4))

2.0 16V 177CV (11/2004-12/2010) 201012 Gasolina (RFK (EW10J4S))

1.6 HDi 90CV (11/2004-07/2011) 201107 Diésel (9HX (DV6ATED4))

1.6 HDi 109CV (11/2004-07/2011) 201107 Diésel (9HY (DV6TED4))

1.6 HDi 109CV (11/2004-07/2011) 201107 Diésel (9HZ (DV6TED4))

2.0 HDi 136CV (11/2004-12/2010) 201012 Diésel (RHR (DW10BTED4))

(OTRAS VERSIONES ...)

C4 I (LC_) (11/2004-12/2013):

1.4 16V 88CV (11/2004-07/2011) 201107 Gasolina (KFU (ET3J4))

1.6 16V 109CV (11/2004-07/2011) 201107 Gasolina (NFU (TU5JP4))

2.0 16V 136CV (11/2004-07/2007) 200707 Gasolina (RFN (EW10J4))

2.0 16V 140CV (11/2004-07/2011) 201107 Gasolina (RFJ (EW10A))

1.6 HDi 90CV (11/2004-07/2011) 201107 Diésel (9HX (DV6ATED4))

1.6 HDi 109CV (01/2006-11/2009) 200911 Diésel (9HY (DV6TED4))

1.6 HDi 109CV (01/2006-11/2009) 200911 Diésel (9HZ (DV6TED4))

2.0 HDi 136CV (11/2004-07/2011) 201107 Diésel (RHR (DW10BTED4))

(OTRAS VERSIONES ...)

C4 PALLAS Saloon (07/2006-):

1.6 16V 109CV (06/2007-11/2014) 201411 Gasolina (NFU (TU5JP4))

1.6 HDi 109CV (07/2006-07/2011) 201107 Diésel (9HY (DV6TED4))

1.6 HDi 109CV (07/2006-07/2011) 201107 Diésel (9HZ (DV6TED4))

Motores CITROËN: RHY (DW10TD),KFW (TU3JP),9HW (DV6BTED4),DV6B,9HX (DV6ATED4),NFU (TU5JP4),NFZ (TU5JP),6FZ (EW7J4),NFV (TU5JP),RFN (EW10J4),9HY (DV6TED4),9HZ (DV6TED4),8HY (DV4TED4),KFU (ET3J4), ...

PEUGEOT:

PARTNER Box (5) (04/1996-12/2015):

1.1 60CV (06/1996-09/2005) 200509 Gasolina (HDZ (TU1M))

1.8 D 58CV (06/1996-12/2002) 200212 Diésel (A9A (XUD7))

1.9 D 69CV (06/1996-12/2002) 200212 Diésel (DJY (XUD9A))

2.0 HDi 90CV (04/2000-07/2008) 200807 Diésel (RHY (DW10TD))

1.4 BiFuel 75CV (04/2003-10/2006) 200610 CNG (KFW (TU3JP))

1.9 D 4x4 69CV (04/2004-11/2007) 200711 Diésel (WJY (DW8B))

1.9 D 69CV (06/1996-12/2015) 201512 Diésel (WJY (DW8B))

1.9 D 69CV (06/1996-12/2015) 201512 Diésel (WJZ (DW8))

(OTRAS VERSIONES ...)

PARTNER ORIGIN (5F) (05/1996-12/2015):

1.9 D 68CV (06/1996-12/2002) 200212 Diésel (DJY (XUD9A))

1.8 90CV (05/1997-12/2003) 200312 Gasolina (LFX (XU7JB))

1.9 D 69CV (12/1998-07/2008) 200807 Diésel (WJY (DW8B))

1.9 D 69CV (12/1998-07/2008) 200807 Diésel (WJZ (DW8))

2.0 HDI 90CV (02/2000-07/2008) 200807 Diésel (RHY (DW10TD))

1.6 16V 109CV (07/2001-03/2008) 200803 Gasolina (NFU (TU5JP4))

1.6 HDi 90 90CV (10/2005-12/2015) 201512 Diésel (9HX (DV6ATED4))

1.6 HDi 75 75CV (02/2006-12/2013) 201312 Diésel (9HW (DV6BTED4))

(OTRAS VERSIONES ...)

307 (3A/C) (08/2000-):

1.6 16V 109CV (08/2000-11/2007) 200711 Gasolina (NFU (TU5JP4))

2.0 16V 136CV (08/2000-06/2005) 200506 Gasolina (RFN (EW10J4))

2.0 HDi 90 90CV (08/2000-) Diésel (RHY (DW10TD))

2.0 HDi 110 107CV (08/2000-) Diésel (RHS (DW10ATED))

1.4 75CV (08/2000-) Gasolina (KFW (TU3JP))

1.4 HDi 68CV (10/2001-) Diésel (8HX (DV4TD))

1.4 HDi 68CV (10/2001-) Diésel (8HZ (DV4TD))

2.0 HDi 135 136CV (10/2003-) Diésel (RHR (DW10BTED4))

(OTRAS VERSIONES ...)

307 SW (3H) (03/2002-12/2009):

1.6 16V 109CV (03/2002-04/2008) 200804 Gasolina (NFU (TU5JP4))

2.0 16V 136CV (03/2002-06/2005) 200506 Gasolina (RFN (EW10J4))

2.0 HDI 90 90CV (03/2002-04/2008) 200804 Diésel (RHY (DW10TD))

2.0 HDI 110 107CV (03/2002-12/2009) 200912 Diésel (RHS (DW10ATED))

1.4 16V 88CV (11/2003-07/2007) 200707 Gasolina (KFU (ET3J4))

1.6 HDI 110 109CV (02/2004-12/2007) 200712 Diésel (9HY (DV6TED4))

1.6 HDI 110 109CV (02/2004-12/2007) 200712 Diésel (9HZ (DV6TED4))

2.0 HDi 135 136CV (02/2004-04/2008) 200804 Diésel (RHR (DW10BTED4))

(OTRAS VERSIONES ...)

307 CC (3B) (03/2003-06/2009):

2.0 16V 136CV (10/2003-06/2005) 200506 Gasolina (RFN (EW10J4))

2.0 16V 177CV (10/2003-04/2009) 200904 Gasolina (RFK (EW10J4S))

1.6 16V 110CV (03/2003-04/2009) 200904 Gasolina (NFU (TU5JP4))

2.0 16V 140CV (12/2004-04/2009) 200904 Gasolina (RFJ (EW10A))

2.0 HDi 135 136CV (06/2005-04/2009) 200904 Diésel (RHR (DW10BTED4))

307 Break (3E) (03/2002-12/2009):

1.4 16V 88CV (11/2003-07/2007) 200707 Gasolina (KFU (ET3J4))

1.6 16V 109CV (03/2002-04/2008) 200804 Gasolina (NFU (TU5JP4))

2.0 HDI 90 90CV (03/2002-09/2009) 200909 Diésel (RHY (DW10TD))

2.0 136CV (03/2002-09/2009) 200909 Gasolina (RFN (EW10J4))

1.6 HDi 110 109CV (02/2004-04/2008) 200804 Diésel (9HY (DV6TED4))

1.6 HDi 110 109CV (02/2004-04/2008) 200804 Diésel (9HZ (DV6TED4))

2.0 HDi 135 136CV (02/2004-04/2008) 200804 Diésel (RHR (DW10BTED4))

1.4 HDi 68CV (03/2002-06/2005) 200506 Diésel (8HZ (DV4TD))

(OTRAS VERSIONES ...)

1007 (KM_) (04/2005-):

1.6 16V 109CV (04/2005-) Gasolina (NFU (TU5JP4))

1.6 HDi 109CV (06/2007-) Diésel (9HZ (DV6TED4))

Motores PEUGEOT: HDZ (TU1M),A9A (XUD7),DJY (XUD9A),RHY (DW10TD),KFW (TU3JP),WJY (DW8B),WJZ (DW8),9HW (DV6BTED4),9HX (DV6ATED4),LFX (XU7JB),NFU (TU5JP4),XUD9, ...

Detalles del producto

MARCA: PEUGEOT
RECAMBIO: Discos De Freno
MODELO: 307 (3A/C) (08/2000-)
307 Break (3E) (03/2002-12/2009)
307 CC (3B) (03/2003-06/2009)
307 SW (3H) (03/2002-12/2009)
1007 (KM_) (04/2005-)
PARTNER Box (5) (04/1996-12/2015)
PARTNER Combispace (5F) (05/1996-12/2015)
PARTNER ORIGIN (5F) (05/1996-12/2015)
PARTNER ORIGIN Box (5) (04/1996-12/2015)
PARTNER ORIGIN Combispace (5F) (05/1996-12/2015)
FAMILIA_AD: Frenos
RECAMBIO_AD: Disco de freno
MARCA_AD: PEUGEOT
GRUPO_VENTA: 12
