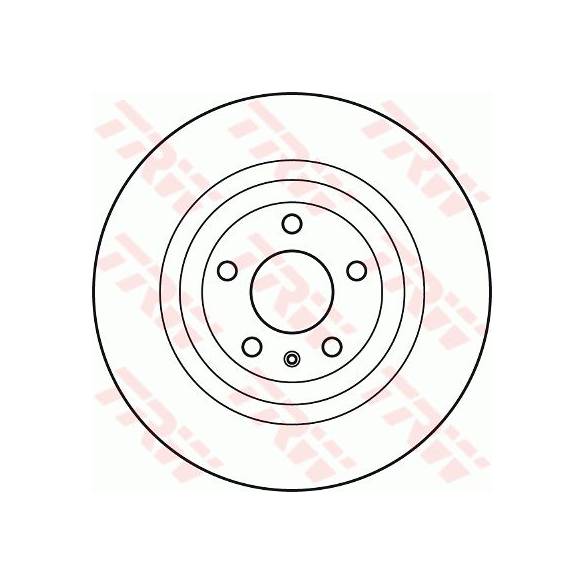

Datos de la referencia:
Tipo de disco de frenos: ventilado
Diámetro [mm]: 300 mm
Espesor de disco de frenos [mm]: 32 mm
Espesor mínimo [mm]: 29,9 mm
Altura [mm]: 73,5 mm
Diámetro de centrado [mm]: 80 mm
corona de agujeros - Ø [mm]: 130 mm
Medida de rosca: 18
Pintura: negro
Superficie: barnizado
SVHC: No hay información disponible, diríjase al fabricante.
Referencias OEM:
CITROËN: 4249 37, 4249 38, 4249 A6
FIAT: 51705758, 51740249
PEUGEOT: 4249 38, 4249 A6, 4249 37
Intercambiabilidades:
A.B.S.: 17741,17741
ABE: C3C036ABE,C3C036ABE
AKEBONO: BN-0207E,BN-0206E,BN-0207,BN-0206,BN-0206E,BN-0207E,BN-0206,BN-0207
AKRON-MALÒ: 1110352,1110352
AP: 25160,25160
APEC braking: DSK2482,DSK2482
ASAM: 74853
ATE: 24.0132-0131.1,24.0132-0131.1,24.0132-0131.1,24.0132-0131.1,24.0132-0131.1,24.0132-0131.1
BENDIX: 522135,522135
BLUE PRINT: ADP154328
BORG & BECK: BBD5805S,BBD5805S
BOSCH: 0 986 479 315,0 986 479 315,0 986 479 315,0 986 479 315,0 986 479 315,0 986 479 315,0 986 479 315,0 986 479 315
BRAXIS: AD0985,AD0985
BRECO: BS 8770,BS 8770
BREMBO: 09.A458.10,09.A458.10
BREMSI: DBB718V,DBB718V
CAR: 142.1417,142.1417
CHAMPION: 562630CH-1,562630CH-1
CIFAM: 800-885C,800-885C
COMLINE: ADC1572V,AND6566,ADC1572V,AND6566,AND6566,ADC1572V,AND6566,ADC1572V,ADC1572V,AND6566
DELPHI: BG4060,BG4060
DENCKERMANN: B130296,B130296,B130296,B130296,B130296
DIAMAX: N08395,N08395
DJ PARTS: BD2392,BD2392
DODA: 1070100142
Dr!ve-: DP1010.11.1371,DP1010.11.1371
E.T.F.: 19-7413,19-7413
EUROBRAKE: 5815201959,5815201959
EUROREPAR: 1618864580,1618864580
FAST: FT31109,FT31109,FT31109,FT31109,FT31109,FT31109,FT31109
FEBI BILSTEIN: 44037
FERODO: DDF1718-1,DDF1718-1
fri.tech.: BD1240,BD1240
FTE: BS7170,BS7170B,BS7170,BS7170B
GIRLING: 6047515,6047515,6047515,6047515,6047515,6047515,6047515,6047515
HELLA: 8DD 355 125-261,8DD 355 125-261
HELLA PAGID: 8DD 355 125-261,8DD 355 125-261
JP GROUP: 4163102000,4163102000
JURATEK: CIT116,CIT116
JURID: 562630JC,562630JC-1,562630JC-1,562630JC
KAMOKA: 103314,103314,103314,103314,103314,103314
KAWE: 61016 10,61016 10
LPR: C1012V,C1012V
MAGNETI MARELLI: 360407100000,360407100000
MAPCO: 25040,25040,25040,25040,25040
MASTER-SPORT: 24013201311-SET-MS,24013201311-SET-MS,24013201311-PCS-MS,24013201311-SET-MS,24013201311-PCS-MS,24013201311-PCS-MS,24013201311-PCS-MS,24013201311-PCS-MS,24013201311-SET-MS,24013201311-SET-MS,24013201311-PCS-MS,24013201311-SET-MS
MAXGEAR: 19-2007,19-2007SPORT,19-2007SPORT,19-2007MAX,19-2007MAX,19-2007
MAXTECH: 875650.0080,875650.0080,875650.0080,875650.0000,875650.6880,875650.0060,875650.6980,875650.0060,875650.6980,875650.0060,875650.6980,875650.6060,875650.0000,875650.6880,875650.0000,875650.6880,875650.0000,875650.6880,875650.0080,875650.6060,875650.6060,875650.6060,875650.0060,875650.6980
METELLI: 23-0885C,23-0885C
METZGER: 6110497,6110497
MEYLE: 215 521 0021,215 521 0021
MINTEX: MDC2006,MDC2006
MOTAQUIP: LVBD1285,LVBD1285
NATIONAL: NBD1532,NBD1443,NBD1532
NK: 201959,311959,311959,201959
Omnicraft: 2134604,2134604
OPEN PARTS: BDA2366.20,BDA2366.20
OPTIMAL: BS-8378HC,BS-8378,BS-8378,BS-8378HC,BS-8378,BS-8378HC
PROTECHNIC: PRD2503,PRD2503
RAICAM: RD01448,RD01448
REMSA: 61016.10,61016.10
REMY: RAD1489C,RAD1489,RAD1489C,RAD1489
RIW: FE987,FE987
ROADHOUSE: 61016.10,61016.10
RYME: 46084,46071,46085,46084,46085,46071
sbs: 1815311959,1815201959,1815311959,1815201959
ST-TEMPLIN: 03.110.2600.060,03.110.2600.060
STELLOX: 6020-9966-SX,6020-9966K-SX,6020-9966-SX,6020-9966K-SX
SWAG: 70 94 4037
TEXTAR: 92157303,92157303
TRISCAN: 8120 101006C,8120 101006C
TRUSTING: DF1240,DF1240
VAICO: V42-80006
VALEO: 197565,197565
VEMA: 98623
WOKING: D61016.10,D61016.10
Compatibilidades:
CITROËN:
JUMPER Bus (04/2006-):
3.0 HDi 180 177CV (07/2011-) Diésel (F1CE3481E (F30DTE))
3.0 HDi 155 157CV (07/2010-) Diésel (F1CE0481D (F30DT))
JUMPER Box (04/2006-):
2.2 HDi 130 130CV (07/2011-) Diésel (4HH (P22DTE))
2.2 HDi 150 150CV (07/2011-) Diésel (4HJ (P22DTE))
3.0 HDi 180 177CV (07/2011-) Diésel (F1CE3481E (F30DTE))
2.2 HDi 120 120CV (04/2006-) Diésel (4HU (P22DTE))
3.0 HDi 160 157CV (09/2006-) Diésel (F1CE0481D (F30DT))
3.0 HDi 155 156CV (07/2010-) Diésel (F1CE0481D (F30DT))
JUMPER Platform/Chassis (04/2006-):
2.2 HDi 130 130CV (07/2011-) Diésel (4HH (P22DTE))
2.2 HDi 150 150CV (07/2011-) Diésel (4HJ (P22DTE))
3.0 HDi 180 177CV (07/2011-) Diésel (F1CE3481E (F30DTE))
2.2 HDi 100 101CV (04/2006-) Diésel (4HV (P22DTE))
2.2 HDi 120 120CV (04/2006-) Diésel (4HU (P22DTE))
3.0 HDi 160 157CV (09/2006-) Diésel (F1CE0481D (F30DT))
Motores CITROËN: F1CE3481E (F30DTE),F1CE0481D (F30DT),4HH (P22DTE),4HJ (P22DTE),4HU (P22DTE),4HV (P22DTE)
FIAT:
DUCATO Bus (250_, 290_) (07/2006-):
180 Multijet 3,0 D 177CV (06/2011-) Diésel (F1CE3481E)
100 Multijet 2,2 D 100CV (07/2006-05/2011) 201105 Diésel (4HV (P22DTE))
120 Multijet 2,3 D 120CV (07/2006-) Diésel (F1AE0481D)
160 Multijet 3,0 D 158CV (07/2006-) Diésel (F1CE0481D)
160 Multijet 3,0 D 158CV (07/2006-) Diésel (F1CE3481M)
140 Natural Power 136CV (04/2009-) CNG (F1CE0441A)
140 Natural Power 136CV (04/2009-) CNG (F1CFA401A)
160 Multijet 3,0 D 156CV (10/2006-) Diésel (F1CE0481D)
DUCATO Box (250_, 290_) (07/2006-):
150 Multijet 2,3 D 148CV (06/2011-) Diésel (F1AE3481E)
180 Multijet 3,0 D 177CV (06/2011-) Diésel (F1CE3481E)
100 Multijet 2,2 D 100CV (07/2006-) Diésel (4HV (P22DTE))
120 Multijet 2,3 D 120CV (07/2006-) Diésel (F1AE0481D)
120 Multijet 2,3 D 120CV (07/2006-) Diésel (FPT)
160 Multijet 3,0 D 158CV (07/2006-) Diésel (F1CE0481D)
130 Multijet 2,3 D 131CV (06/2011-) Diésel (F1AE0481N)
130 Multijet 2,3 D 131CV (06/2011-) Diésel (F1AE3481D)
(OTRAS VERSIONES ...)
DUCATO Platform/Chassis (250_, 290_) (07/2006-):
150 Multijet 2,3 D 148CV (06/2011-) Diésel (F1AE3481E)
180 Multijet 3,0 D 177CV (06/2011-) Diésel (F1CE3481E)
100 Multijet 2,2 D 100CV (07/2006-) Diésel (4HV (P22DTE))
120 Multijet 2,3 D 120CV (07/2006-) Diésel (F1AE0481D)
160 Multijet 3,0 D 158CV (07/2006-) Diésel (F1CE0481D)
130 Multijet 2,3 D 131CV (07/2006-) Diésel (F1AE0481N)
130 Multijet 2,3 D 131CV (07/2006-) Diésel (F1AE3481D)
130 Multijet 2,3 D 131CV (07/2006-) Diésel (F1AGL411D)
(OTRAS VERSIONES ...)
Motores FIAT: F1CE3481E,4HV (P22DTE),F1AE0481D,F1CE0481D,F1CE3481M,F1CE0441A,F1CFA401A,F1AE3481E,FPT,F1AE0481N,F1AE3481D,F1AGL411D, ...
PEUGEOT:
BOXER Bus (09/2005-):
2.2 HDi 130 131CV (03/2011-) Diésel (4HH (P22DTE))
2.2 HDi 150 150CV (03/2011-) Diésel (4HJ (P22DTE))
3.0 HDi 175 177CV (03/2011-) Diésel (F1CE3481E (F30DTE))
3.0 HDi 160 156CV (04/2006-) Diésel (F1CE0481D (F30DT))
BOXER Box (04/2006-):
3.0 HDi 175 177CV (03/2011-) Diésel (F1CE3481E (F30DTE))
2.2 HDi 130 131CV (03/2011-) Diésel (4HH (P22DTE))
2.2 HDi 150 150CV (03/2011-) Diésel (4HJ (P22DTE))
3.0 HDi 160 156CV (04/2006-) Diésel (F1CE0481D (F30DT))
BOXER Platform/Chassis (04/2006-):
2.2 HDi 130 131CV (03/2011-) Diésel (4HH (P22DTE))
2.2 HDi 150 150CV (03/2011-) Diésel (4HJ (P22DTE))
3.0 HDi 175 177CV (03/2011-) Diésel (F1CE3481E (F30DTE))
2.2 HDi 120 120CV (04/2006-) Diésel (4HU (P22DTE))
3.0 HDi 160 156CV (04/2006-) Diésel (F1CE0481D (F30DT))
Motores PEUGEOT: 4HH (P22DTE),4HJ (P22DTE),F1CE3481E (F30DTE),F1CE0481D (F30DT),4HU (P22DTE)
