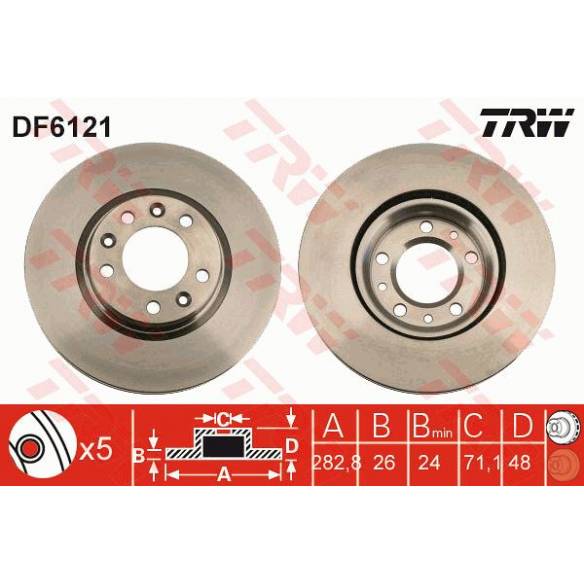

Datos de la referencia:
Tipo de disco de frenos: ventilado
Diámetro [mm]: 282 mm
Espesor de disco de frenos [mm]: 26 mm
Espesor mínimo [mm]: 24 mm
Altura [mm]: 48 mm
Diámetro de centrado [mm]: 71 mm
corona de agujeros - Ø [mm]: 108 mm
Pintura: negro
Superficie: barnizado
SVHC: No hay información disponible, diríjase al fabricante.
Referencias OEM:
CITROËN: 4249 L3
PEUGEOT: 4246 V4, E 169 147, 4249 L3, 4246 P7, E 169 513
Intercambiabilidades:
ATE: 24.0126-0121.1,24.0126-0121.1,24.0126-0121.1
BOSCH: 0 986 479 193,0 986 479 193,0 986 478 732,0 986 479 193,0 986 479 193
BSG: BSG 70-210-021,BSG 70-210-021,BSG 70-210-021,BSG 70-210-021,BSG 70-210-021,BSG 70-210-021
COMLINE: ADC1532V,ADC1545V
DT Spare Parts: 12.41000
GIRLING: 6061211,6061211,6061211,6061211,6061211,6061211
KAMOKA: 1031082,1031082,1031082
KRAFT AUTOMOTIVE: 6045610,6045610,6045610
LEMFÖRDER: 30882 01,30885 01
MASTER-SPORT: 24012601211-SET-MS,24012601211-SET-MS,24012601211-PCS-MS,24012601211-SET-MS,24012601211-PCS-MS,24012601211-PCS-MS
MAXGEAR: 19-1038SPORT,19-1038SPORT,19-1038SPORT,19-1038SPORT,19-1293
MAXTECH: 875652.0000,875652.6880,875652.6060,875652.0080,875652.0060,875652.6980
MEYLE: 11-15 521 0038/PD,11-15 521 0038/PD,11-15 521 0038,11-15 521 0038
RYME: 46036
TOPRAN: 721 173,721 173,721 173,721 173
Compatibilidades:
CITROËN:
XM (Y3) (05/1989-10/1994):
2.0 i Turbo 141CV (09/1992-06/1994) 199406 Gasolina (RGY (XU10J2TE/Z))
XM Break (Y3) (05/1989-07/1994):
2.0 Turbo 141CV (09/1992-04/1994) 199404 Gasolina (RGY (XU10J2TE/Z))
Motores CITROËN: RGY (XU10J2TE/Z)
PEUGEOT:
607 (9D, 9U) (01/2000-):
2.2 HDi 133CV (02/2000-02/2006) 200602 Diésel (4HX (DW12TED4/FAP))
2.2 16V 158CV (02/2000-08/2005) 200508 Gasolina (3FZ (EW12J4))
2.0 136CV (02/2000-08/2005) 200508 Gasolina (RFN (EW10J4))
2.0 HDI 109CV (05/2000-09/2005) 200509 Diésel (RHZ (DW10ATED))
2.0 HDi 107CV (03/2001-09/2004) 200409 Diésel (RHS (DW10ATED))
407 (6D_) (03/2004-):
2.0 Bioflex 140CV (09/2007-) (RFJ (EW10A))
2.0 136CV (03/2004-) Gasolina (RFN (EW10J4))
2.0 HDi 135 136CV (05/2004-) Diésel (RHR (DW10BTED4))
1.6 HDi 110 109CV (05/2004-) Diésel (9HZ (DV6TED4))
1.8 16V 125CV (09/2005-) Gasolina (6FY (EW7A))
2.0 16V 140CV (09/2005-) Gasolina (RFJ (EW10A))
407 SW (6E_) (05/2004-):
1.8 116CV (05/2004-) Gasolina (6FZ (EW7J4))
2.0 136CV (05/2004-) Gasolina (RFN (EW10J4))
1.6 HDi 110 109CV (05/2004-) Diésel (9HZ (DV6TED4))
2.0 HDi 135 136CV (07/2004-12/2010) 201012 Diésel (RHR (DW10BTED4))
1.8 16V 125CV (09/2005-) Gasolina (6FY (EW7A))
2.0 16V 140CV (09/2005-) Gasolina (RFJ (EW10A))
2.0 HDi 140CV (08/2008-) Diésel (RHR (DW10BTED4))
508 I (8D_) (11/2010-):
1.6 VTi 120CV (11/2010-) Gasolina (5FS (EP6C))
1.6 THP 156CV (11/2010-) Gasolina (5FV (EP6CDT))
1.6 HDi 112CV (11/2010-) Diésel (9HL (DV6C))
1.6 HDi 112CV (11/2010-) Diésel (9HR (DV6C))
2.0 HDi 140CV (11/2010-) Diésel (RHA (DW10CTED4))
2.0 HDi 140CV (11/2010-) Diésel (RHF (DW10BTED4))
2.0 HDi 163CV (11/2010-) Diésel (RHH (DW10CTED4))
2.2 HDi 204CV (11/2010-) Diésel (4HL (DW12C))
(OTRAS VERSIONES ...)
508 SW I (8E_) (11/2010-):
1.6 VTi 120CV (11/2010-) Gasolina (5FS (EP6C))
1.6 THP 156CV (11/2010-) Gasolina (5FV (EP6CDT))
1.6 HDi 112CV (11/2010-) Diésel (9HL (DV6C))
1.6 HDi 112CV (11/2010-) Diésel (9HR (DV6C))
2.0 HDi 140CV (11/2010-) Diésel (RHA (DW10CTED4))
2.0 HDi 140CV (11/2010-) Diésel (RHF (DW10BTED4))
2.0 HDi 163CV (11/2010-) Diésel (RHH (DW10CTED4))
2.2 HDi 204CV (11/2010-) Diésel (4HL (DW12C))
(OTRAS VERSIONES ...)
Motores PEUGEOT: 4HX (DW12TED4/FAP),3FZ (EW12J4),RFN (EW10J4),RHZ (DW10ATED),RHS (DW10ATED),RFJ (EW10A),RHR (DW10BTED4),9HZ (DV6TED4),6FY (EW7A),6FZ (EW7J4),5FS (EP6C),5FV (EP6CDT),9HL (DV6C),9HR (DV6C), ...
