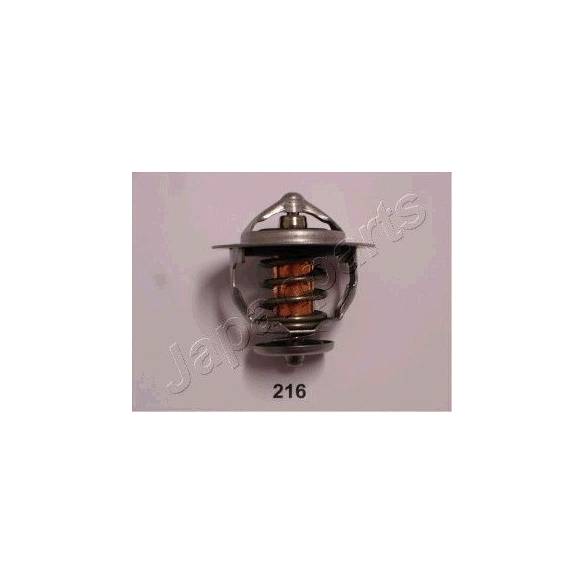

Datos de la referencia:
Temperatura de abertura [°C]: 82 °C
Altura [mm]: 59,4 mm
Profundidad de montaje [mm]: 37 mm
Diámetro [mm]: 56 mm
Diámetro 1 [mm]: 28 mm
Referencias OEM:
TOYOTA: 90916-03101, 90916-03123
Intercambiabilidades:
ABAKUS: 051-025-0001,051-025-0001
ASHIKA: 38-02-216,38-02-216
ASHUKI: 0459-1102
AUTOMOTOR France: PTH9882
BEHR: TX 73 82D
BGA: CT5197,CT5197
BLUE PRINT: ADT39210,ADT39208
BORG & BECK: BBT384
CALORSTAT by Vernet: TH6311.82J,TH6311.82J
DODA: 1040230076
EFI Automotive: 161004,161004
EPS: 1.880.360,1.880.222S,1.880.222,1.880.360S
ERA: 350120,350120
FACET: 7.8360,7.8222S,7.8222,7.8360S
FAE: 5324382,5324382
FIRST LINE: FTK384
HELLA: 8MT 354 773-851,8MT 354 774-791
HERTH-BUSS JAKOPARTS: J1532023,J1532026
JAPKO: 38216,38216
KW: 580 222S,580 360S,580 360,580 222
MAGNETI MARELLI: 352029882000
MAHLE: TX 73 82D
MAPCO: 28571,28571
MAXGEAR: 67-0056,67-0056
METZGER: 4006198,4006198
MOTORAD: 298-82K
NIPPARTS: J1532027,J1532023,J1532011
OSSCA: 11010,06087,05415
QUINTON HAZELL: QTH606K
SMPE: KTS137,75617
THERMOTEC: D22002TT,D22002TT
TRISCAN: 8620 8082,8620 8088,8620 8082,8620 8088
VALEO: 820173,820173
VEMO: V20-99-1281,V20-99-1281
WAHLER: 410178.82D,410231.82D
Compatibilidades:
MITSUBISHI:
SPACE WAGON (N3_W, N4_W) (05/1991-11/2000):
2.0 TD (N38W) 82CV (10/1992-10/1998) 199810 Diésel (4D68 T)
GALANT V (E5_A, E7_A, E8_A) (11/1992-10/1996):
2.0 GLSTD (E57A) 90CV (11/1992-08/1996) 199608 Diésel (4D68 T)
GALANT V Saloon (E5_A, E7_A, E8_A) (11/1992-12/1998):
2.0 GLSTD (E57A) 90CV (11/1992-08/1996) 199608 Diésel (4D68 T)
SPACE STAR MPV (DG_A) (06/1998-12/2004):
1.6 16V (DG3A) 98CV (01/2001-12/2004) 200412 Gasolina (4G18)
MONTERO IO (H6_W, H7_W) (03/1999-06/2007):
2.0 GDI (H67W, H77W) 129CV (10/2000-06/2007) 200706 Gasolina (4G94 (GDI))
LANCER VII (CS_A, CT_A) (03/2000-12/2013):
1.6 (CS3A) 98CV (09/2003-12/2013) 201312 Gasolina (4G18)
LANCER VII Estate (CS_W, CT_W) (09/2003-12/2008):
1.6 98CV (09/2003-10/2008) 200810 Gasolina (4G18)
PAJERO IV (V8_W, V9_W) (10/2006-):
3.2 DI-D (V88W, V98W) 160CV (02/2007-) Diésel (4M41)
3.2 DI-D (V88W, V98W) 170CV (02/2007-) Diésel (4M41)
PAJERO III (V7_W, V6_W) (01/1999-09/2007):
3.2 Di-D (V68W) 160CV (04/2000-12/2006) 200612 Diésel (4M41)
Motores MITSUBISHI: 4D68 T,4G18,4G94 (GDI),4M41
TOYOTA:
HIACE III MPV (_H1_) (08/1987-12/2004):
2.0 (RZH102, RZH112) 101CV (08/1989-04/1998) 199804 Gasolina (1RZ)
2.4 (RZH103) 120CV (08/1989-08/1995) 199508 Gasolina (2RZ-E)
HIACE IV Bus (_H1_, _H2_) (08/1995-):
2.4 (RCH12_, RCH22_) 115CV (08/1995-04/1998) 199804 Gasolina (2RZ-E)
2.7 (RCH13_, RCH23_) 143CV (04/1998-11/2001) 200111 Gasolina (3RZ-FE)
2.7 4WD (RCH19_) 143CV (04/1998-08/2006) 200608 Gasolina (3RZ-FE)
2.7 (RCH13_, RCH23_) 144CV (11/2001-12/2006) 200612 Gasolina (3RZ-FE)
COROLLA (_E11_) (04/1997-06/2002):
2.0 D-4D (CDE110_) 90CV (09/2000-11/2001) 200111 Diésel (1CD-FTV)
COROLLA Liftback (_E11_) (04/1997-01/2002):
2.0 D-4D (CDE110_) 90CV (09/2000-01/2002) 200201 Diésel (1CD-FTV)
COROLLA Compact (_E11_) (04/1997-01/2002):
2.0 D-4D (CDE110_) 90CV (09/2000-01/2002) 200201 Diésel (1CD-FTV)
HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) (08/1987-07/2006):
2.0 (RCH102_, RCH112_) 101CV (02/1990-08/1995) 199508 Gasolina (1RZ)
AVENSIS (_T22_) (09/1997-02/2003):
2.0 D-4D (CDT220_) 110CV (10/1999-02/2003) 200302 Diésel (1CD-FTV)
AVENSIS Estate (_T22_) (09/1997-02/2003):
2.0 D-4D (CDT220_) 110CV (10/1999-02/2003) 200302 Diésel (1CD-FTV)
PREVIA (_R1_, _R2_) (01/1990-08/2000):
2.4 (TCR11_, TCR10_) 132CV (05/1990-08/2000) 200008 Gasolina (2TZ-FE)
2.4 4WD (TCR21_, TCR20_) 132CV (01/1990-08/2000) 200008 Gasolina (2TZ-FE)
AVENSIS Liftback (_T22_) (09/1997-02/2003):
2.0 D-4D (CDT220_) 110CV (10/1999-02/2003) 200302 Diésel (1CD-FTV)
COROLLA Estate (_E11_) (04/1997-10/2001):
2.0 D-4D (CDE110_) 90CV (09/2000-10/2001) 200110 Diésel (1CD-FTV)
1.0 (SCP10_) 68CV (04/1999-09/2005) 200509 Gasolina (1SZ-FE)
1.3 (NCP10_, SCP12_) 86CV (11/1999-10/2005) 200510 Gasolina (2NZ-FE)
1.5 (NCP13_) 106CV (04/2001-09/2005) 200509 Gasolina (1NZ-FE)
1.4 D-4D (NLP10_) 75CV (10/2001-09/2005) 200509 Diésel (1ND-TV)
1.3 (SCP12_, NCP10_, SCP13_) 87CV (04/2002-09/2005) 200509 Gasolina (2SZ-FE)
1.0 (SCP10_) 65CV (03/2003-09/2005) 200509 Gasolina (1SZ-FE)
1.5 (NCP13_) 105CV (01/2003-11/2005) 200511 Gasolina (1NZ-FE)
2.7 (RCH13_, RCH23_) 143CV (04/1998-08/2006) 200608 Gasolina (3RZ-FE)
2.7 4WD (RCH19_, RCH29_) 144CV (04/1998-) Gasolina (3RZ-FE)
1.3 (NCP20_, NCP22_) 86CV (08/1999-10/2002) 200210 Gasolina (2NZ-FE)
1.5 (NCP21_) 106CV (03/2000-09/2005) 200509 Gasolina (1NZ-FE)
1.4 D-4D (NLP20_, NLP22_) 75CV (10/2001-09/2005) 200509 Diésel (1ND-TV)
1.3 (NCP20_, NCP22_) 84CV (11/2002-09/2005) 200509 Gasolina (2NZ-FE)
1.5 (NCP21_) 105CV (03/2000-09/2005) 200509 Gasolina (1NZ-FE)
2.0 D-4D (CLR30_) 116CV (03/2001-01/2006) 200601 Diésel (1CD-FTV)
2.0 D 4WD (CLA20_, CLA21_) 116CV (05/2001-11/2005) 200511 Diésel (1CD-FTV)
1.5 Hybrid (NHW1_) 72CV (05/2000-01/2004) 200401 Híbrido (1NZ-FXE)
2.0 D (CLM20_) 116CV (08/2001-08/2005) 200508 Diésel (1CD-FTV)
2.0 D-4D (CDE120_) 90CV (01/2002-12/2006) 200612 Diésel (1CD-FTV)
2.0 D-4D (CDE120R_, CDE120L_) 110CV (01/2002-12/2006) 200612 Diésel (1CD-FTV)
2.0 D-4D (CDE120R_, CDE120L_) 116CV (05/2003-02/2007) 200702 Diésel (1CD-FTV)
1.4 D (NDE120_) 90CV (07/2004-02/2007) 200702 Diésel (1ND-TV)
2.0 D-4D (CDE120_) 90CV (01/2002-12/2006) 200612 Diésel (1CD-FTV)
1.4 D-4D (NDE120_) 90CV (06/2004-10/2006) 200610 Diésel (1ND-TV)
2.0 D-4D (CDE120_) 90CV (01/2002-02/2007) 200702 Diésel (1CD-FTV)
2.0 D-4D (CDE120_) 116CV (04/2004-02/2007) 200702 Diésel (1CD-FTV)
1.4 D4-D (NDE120_) 90CV (06/2004-10/2007) 200710 Diésel (1ND-TV)
2.0 D-4D (CDE120_) 90CV (01/2002-05/2004) 200405 Diésel (1CD-FTV)
2.0 D-4D (CDT250_) 116CV (04/2003-11/2008) 200811 Diésel (1CD-FTV)
2.0 D-4D (CDT250_) 116CV (04/2003-11/2008) 200811 Diésel (1CD-FTV)
2.0 D-4D (CDT250_) 116CV (04/2003-11/2008) 200811 Diésel (1CD-FTV)
1.5 (NHW20_) 78CV (09/2003-12/2009) 200912 Híbrido (1NZ-FXE)
2.0 D-4D (CUR10_) 116CV (04/2004-03/2009) 200903 Diésel (1CD-FTV)
1.4 D-4D (NLP90_) 90CV (08/2005-) Diésel (1ND-TV)
2.4 i 4WD (RZN14_, RZN16_, RZN19_) 140CV (08/1997-10/2005) 200510 Gasolina (2RZ-FE)
Motores TOYOTA: 1RZ,2RZ-E,3RZ-FE,1CD-FTV,2TZ-FE,1SZ-FE,2NZ-FE,1NZ-FE,1ND-TV,2SZ-FE, ...
LEXUS:
GS (JZS147_) (01/1993-08/1997):
300 (JZS147_) 212CV (01/1993-08/1997) 199708 Gasolina (2JZ-GE)
IS I (_E1_) (04/1999-07/2005):
300 (JCE10) 213CV (09/2001-07/2005) 200507 Gasolina (2JZ-GE)
GS (_S16_) (08/1997-12/2004):
300 (JZS160_) 222CV (08/1997-10/2000) 200010 Gasolina (2JZ-GE)
300 (JZS160_) 219CV (10/2000-12/2004) 200412 Gasolina (2JZ-GE)
IS SportCross (_E1_) (10/2001-10/2005):
300 (JCE10_) 213CV (10/2001-10/2005) 200510 Gasolina (2JZ-GE)
Motores LEXUS: 2JZ-GE
